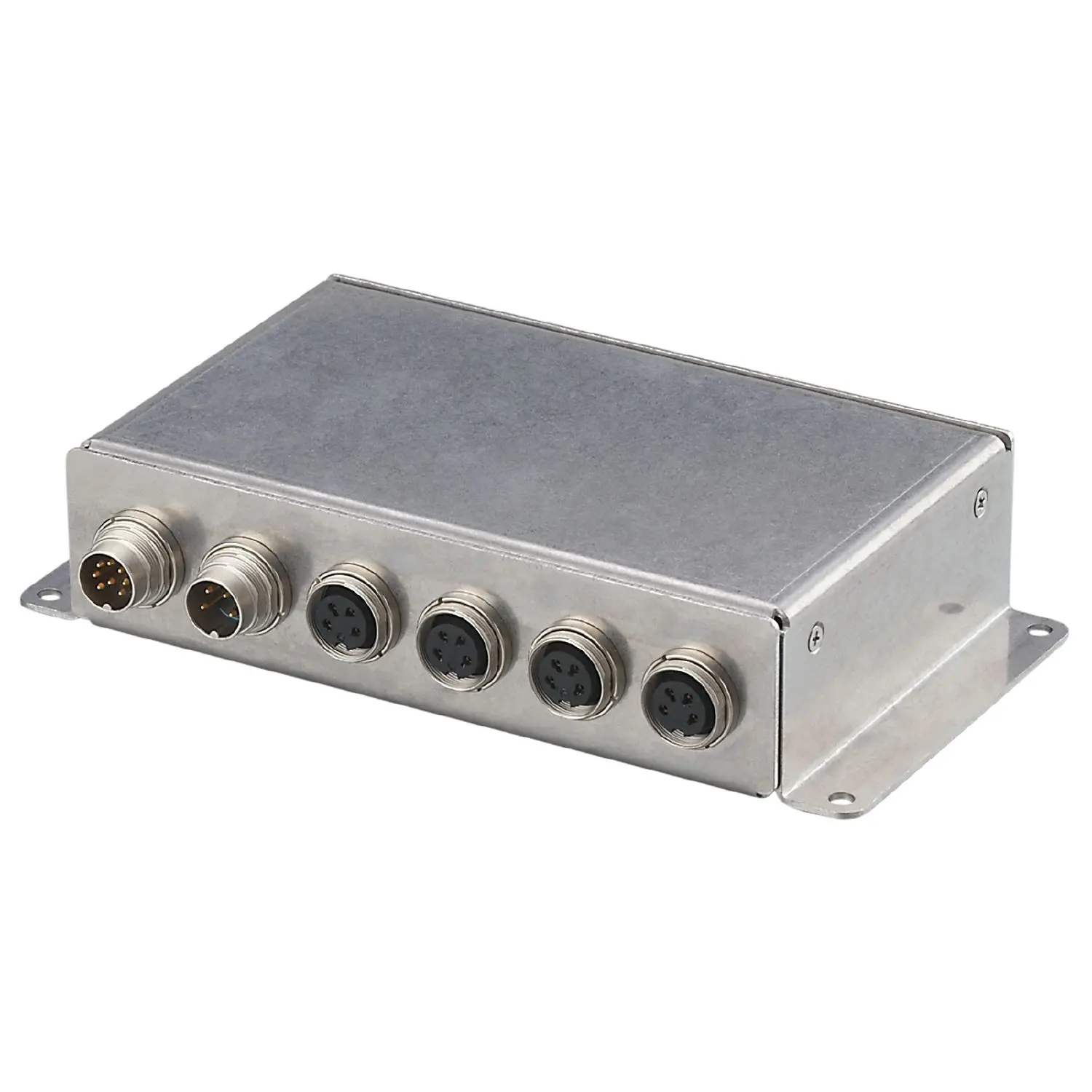

ifm Electronic E2M250 MultiViewBox

Product characteristics

• Image resolution [px]: 680 x 480

Electrical data

• Operating voltage [V]: 10...32 DC
• Current consumption [mA]: < 770
• Overvoltage protection: yes

Detection zone

• Image resolution [px]: 680 x 480

Operating conditions

• Ambient temperature [°C]: -40...85
• Storage temperature [°C]: -40...125
• Storage humidity [%]: < 75; (relative humidity)
• Shelf life [MON]: 24
• Protection: IP 67; (ISO 20653)

Tests / approvals

• EMC: DIN EN 61000-6-4, industrial environments
, DIN EN 61000-6-2, industrial environments
• Shock resistance: , 50 g
• Vibration resistance: Frequency range 24...2000 Hz,
, (15.3 x 9.81 m/s²)rms, PSD (g²/Hz), 0.04...0.1,

Mechanical data

• Weight [g]: 1569.5
• Materials: housing: stainless steel (316 / 1.4401)

Accessories

• Items supplied: Protective covers

Remarks

• Pack quantity: 1 pcs.

Electrical connection - ..C4

• : Connector: 4 x M16; coding: A

Electrical connection - INPUT

• : Connector: 1 x M16; coding: A

Electrical connection - OUTPUT

• : Connector: 1 x M16; coding: A

E2M250-01 — 09.01.2017 —
