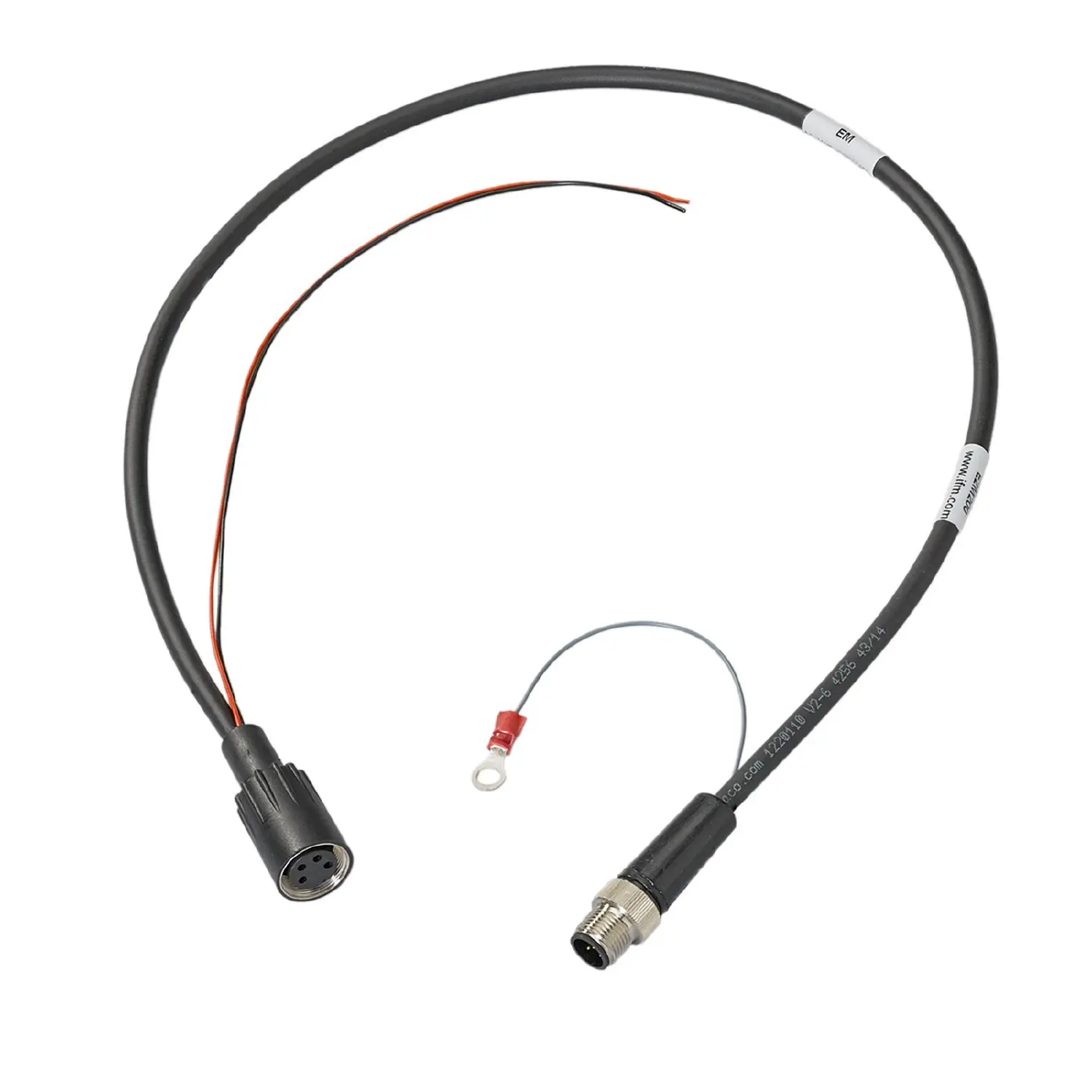

ifm Electronic E2M200 Verbindungskabel für Kameras mit Videoausgang

Application

• Special feature: Free from silicone; Gold-plated contacts
• Design: camera with video output O2M20x
• Free from silicone: yes

Electrical data

• Operating voltage [V]: < 60 DC
• Protection class: II
• Max. current load total [A]: 4

Operating conditions

• Ambient temperature [°C]: -45...85
• Protection: IP 67

Mechanical data

• Weight [g]: 72.4
• Mounting thread: M16
• Materials: housing: PVC; Sealing: EPDM
• Material nut: PVC

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• : Cable: 0.6 m, PVC, black, Ø 6 mm; 3 x 0.34 mm² / AWG 22 + 1 x 0.11 mm² / AWG 26

Electrical connection - plug

• Connection: Connector: 1 x M12, straight; coding: A; Locking: PVC; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection - socket

• : Connector: 1 x M16, straight; coding: A; Locking: PVC; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

E2M200-00 — 13.02.2014 —
