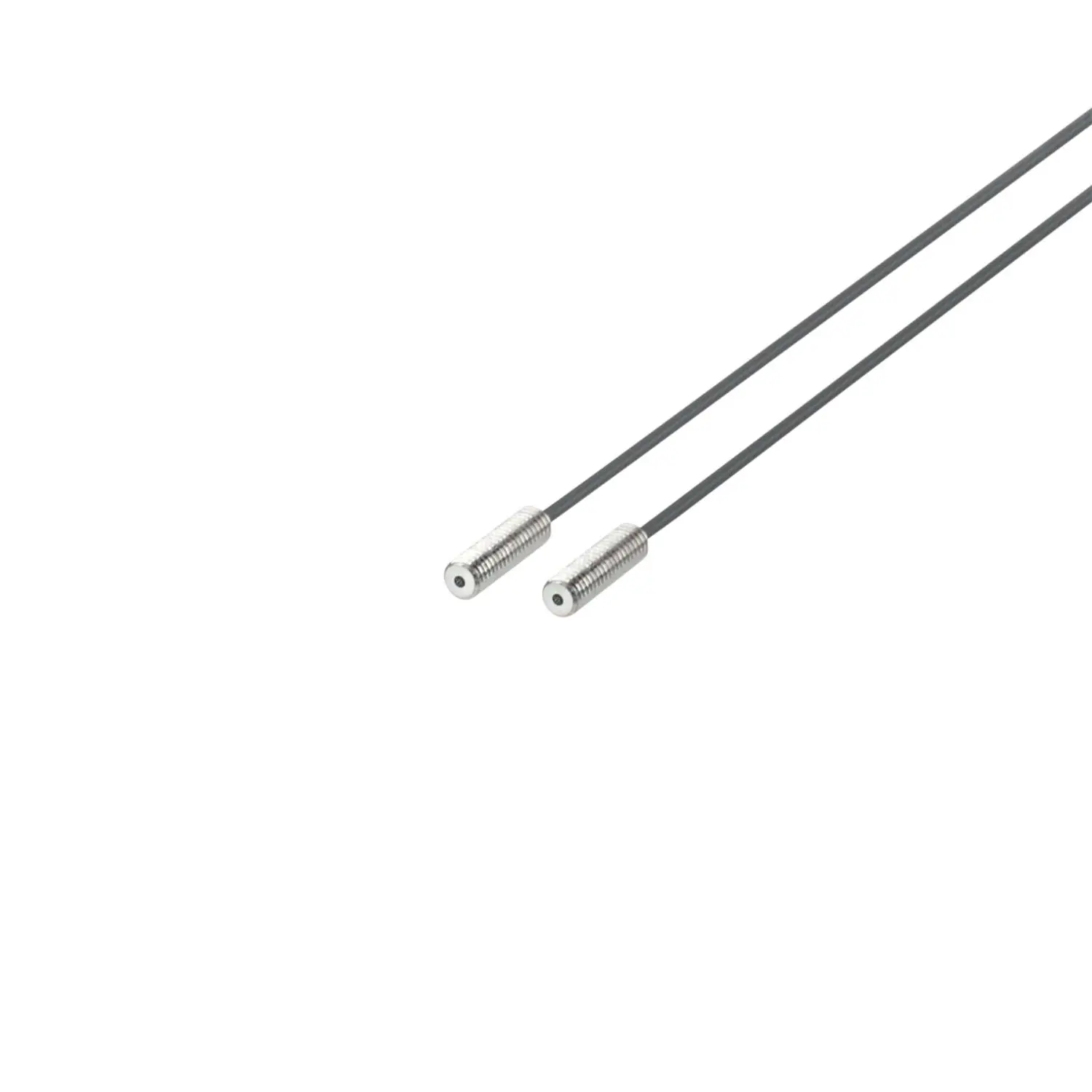

ifm Electronic E21325 Lichtwellenleiter Einweglichtschranke

Application

• Function principle: Through-beam sensor
• Application: Bending-resistant design for applications in robotics; For use in industrial environments

Detection zone

• Range with fibre-optic amplifier type: OBF; OO50; OCF
OBF
• Range of fibre optics [mm]: 56
OO50
• Range of fibre optics [mm]: 120
OCF (High Power)
• Range of fibre optics [mm]: 570

Operating conditions

• Ambient temperature [°C]: -40...70

Mechanical data

• Weight [g]: 32.05
• Version of sensing head: straight
• Sensing head thread: M3
• Total length [mm]: 2000
• Min. bending radius [mm]: 2
• Fibre arrangement:
• Core diameter [mm]: 4 x 0.25
• Fibre material: PMMA
• Fibre head material: stainless steel (1.4305 / 303)
• Fibre sheath material: PE

Accessories

• Items supplied: hexagon nuts: 4 x M3
, tooth lock washers: 4
• Accessories (optional): Cutter for fibre optics:, E20600

Remarks

• Pack quantity: 1 pcs.

E21325-00 — 26.07.2022 —
