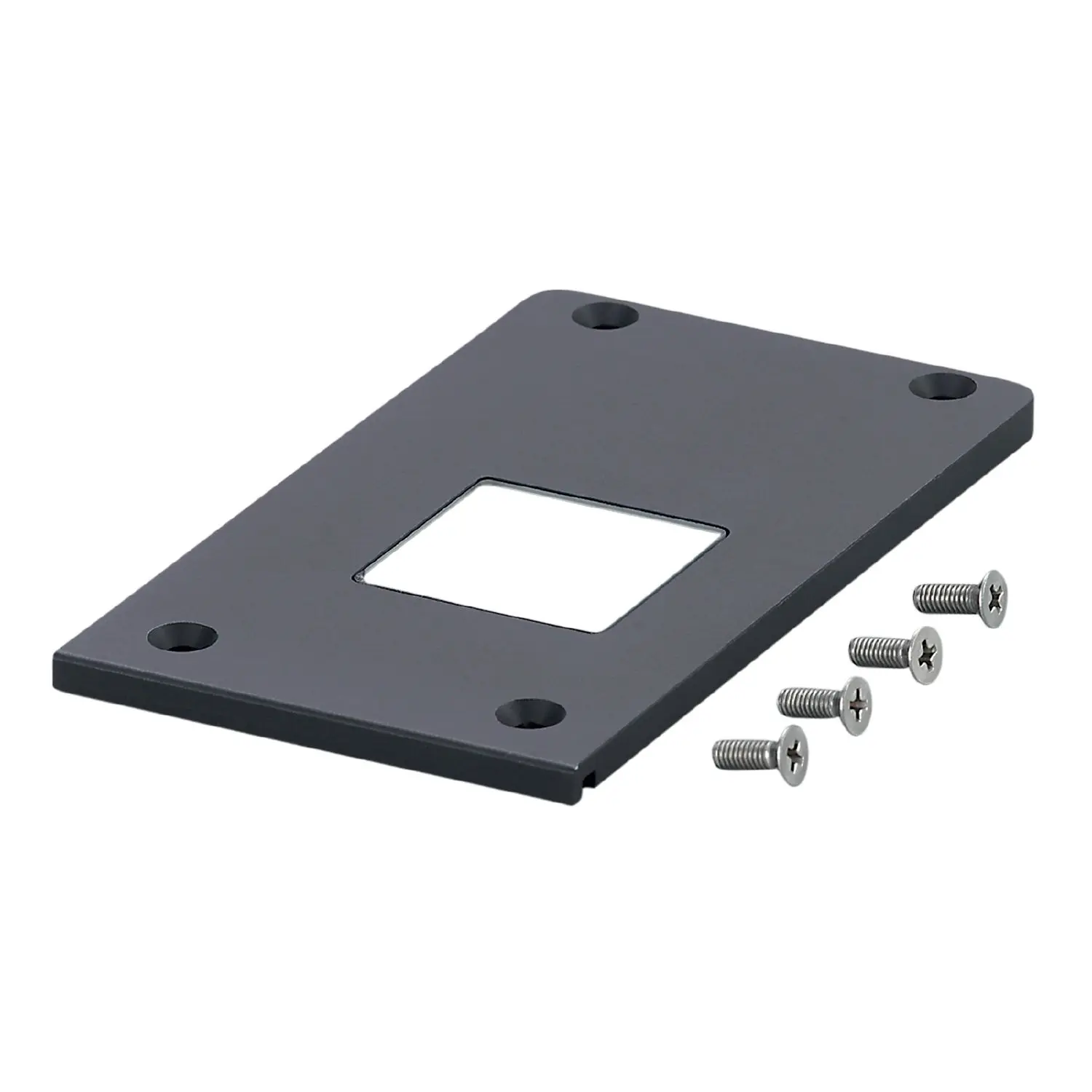

ifm Electronic E21308 Frontrahmen für Kühlgehäuse Abstandsensoren

Application

• Design: front frame for the protective housing with an active cooling system for sensors of the types O1D
• Pressure rating [bar]: 10

Operating conditions

• Ambient temperature [°C]: -10...180

Mechanical data

• Weight [g]: 59.4
• Installation instruction: countersunk screws have to be secured with Loctite ® adhesive 243 and tightened with 150 Ncm
• Dimensions [mm]: 95 x 54 x 4
• Materials: bezel: aluminium black anodised; front pane: float glass

Accessories

• Items supplied: countersunk screws: 4 x M3 x 8, stainless steel

Remarks

• Pack quantity: 1 pcs.

E21308-00 — 05.06.2020 —
