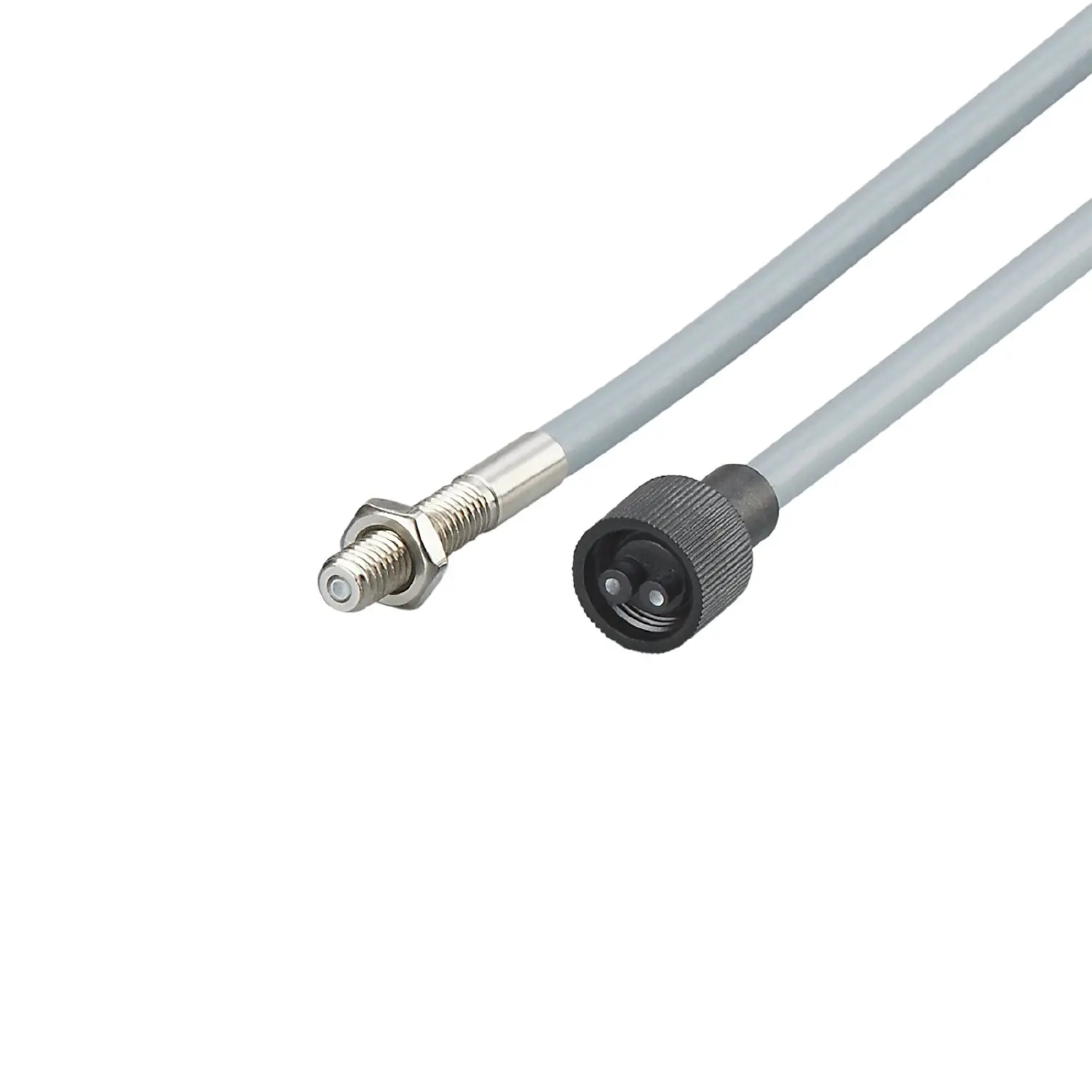

ifm Electronic E21153 Lichtwellenleiter Reflexlichttaster

Application

• Function principle: Diffuse reflection sensor
• Application: High temperature resistance; Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals

Detection zone

• Range with fibre optic amplifier type: OKF
OKF
• Range fibre optics [mm]: 28

Operating conditions

• Ambient temperature [°C]: -40...150

Mechanical data

• Weight [g]: 125
• Version of sensing head: straight
• Sensing head thread: M6
• Sensing head length [mm]: 35
• Total length [mm]: 2000
• Min. bending radius [mm]: 45
• Fibre arrangement:
• Core diameter [mm]: 1.6
• Fibre diameter [mm]: 0.05
• External diameter [mm]: 5.4
• Fibre material: glass
• Fibre head material: stainless steel (1.4571/316Ti )
• Fibre sheath material: metal silicone

Remarks

• Pack quantity: 1 pcs.

E21153-00 — 12.07.2010 —
