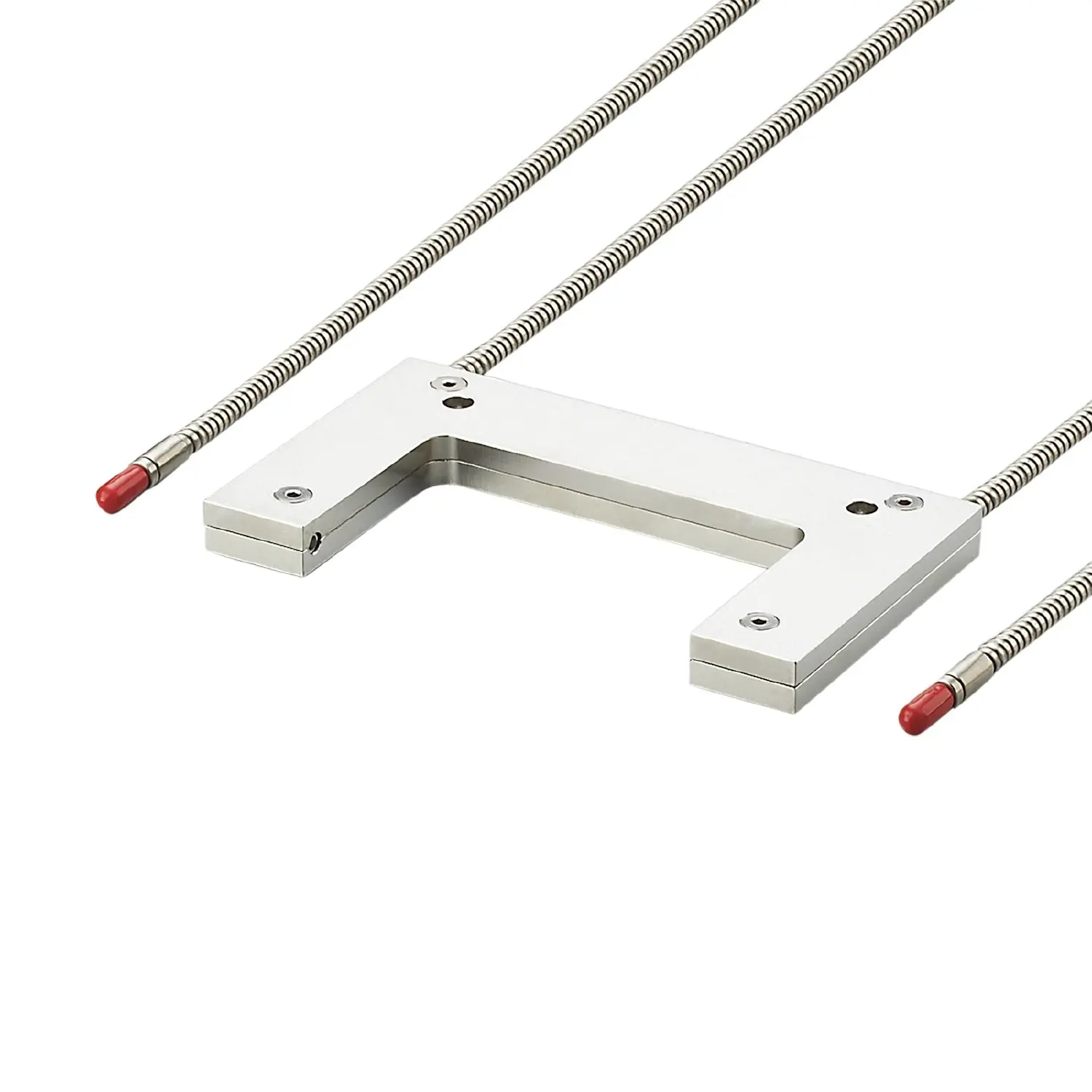

ifm Electronic E21132 Lichtwellenleiter Einweglichtschranke

Application

• Function principle: Through-beam sensor
• Application: High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

• Range with fibre-optic amplifier type: OBF; OMF
OBF
• Range of fibre optics [mm]: 93
OMF
• Range of fibre optics [mm]: 93

Operating conditions

• Ambient temperature [°C]: -58...315

Mechanical data

• Weight [g]: 1161.5
• Sensing head height [mm]: 12
• Sensing head width [mm]: 143
• Sensing head length [mm]: 85
• Probe dimensions [mm]: 12 x 143 x 85
• Total length [mm]: 2500
• Min. bending radius [mm]: 19
• Materials: fixture: stainless steel (1.4301 / 304)
• Fibre material: glass
• Fibre head material: stainless steel (1.4305 / 303)
• Fibre sheath material: stainless steel (1.4305 / 303)

Remarks

• Pack quantity: 1 pcs.

E21132-00 — 26.07.2010 —
