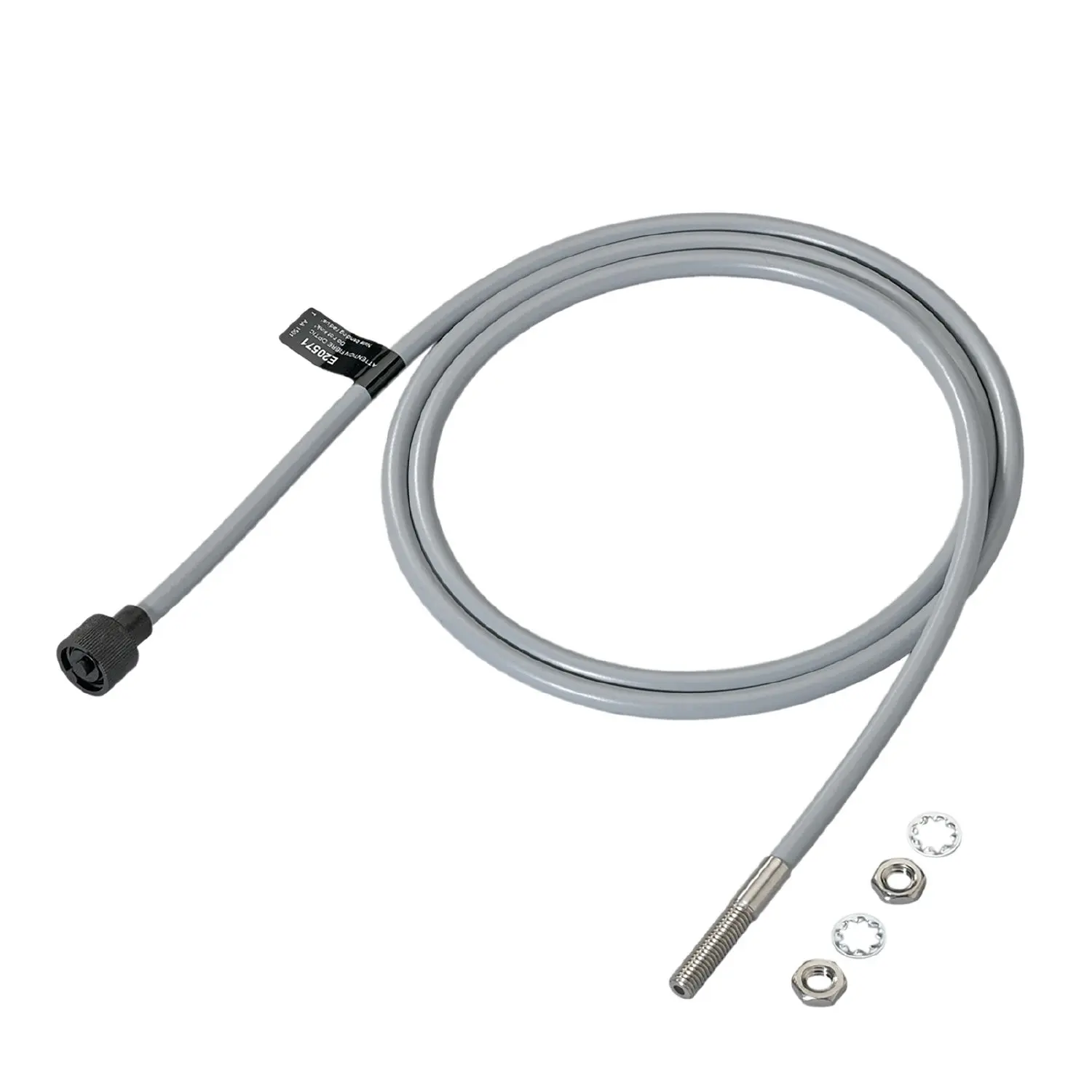

ifm Electronic E20571 Lichtwellenleiter Reflexlichttaster

Application

• Function principle: Diffuse reflection sensor
• Application: Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals

Detection zone

• Range with fibre optic amplifier type: OCF; OKF; OUF
OCF (High Power)
• Range fibre optics [mm]: 280
OKF
• Range fibre optics [mm]: 15
OUF
• Range fibre optics [mm]: 15

Operating conditions

• Ambient temperature [°C]: -20...80

Mechanical data

• Weight [g]: 84.5
• Version of sensing head: straight
• Sensing head thread: M6
• Total length [mm]: 1200
• Min. bending radius [mm]: 20
• Fibre arrangement:
• Fibre material: PMMA
• Fibre head material: stainless steel (1.4305 / 303)
• Fibre sheath material: metal silicone

Accessories

• Items supplied: hexagon nuts: 2 x M6, stainless steel
, tooth lock washers: 2, knurled nut: 1 x M11

Remarks

• Pack quantity: 1 pcs.

E20571-00 — 20.09.2022 —
