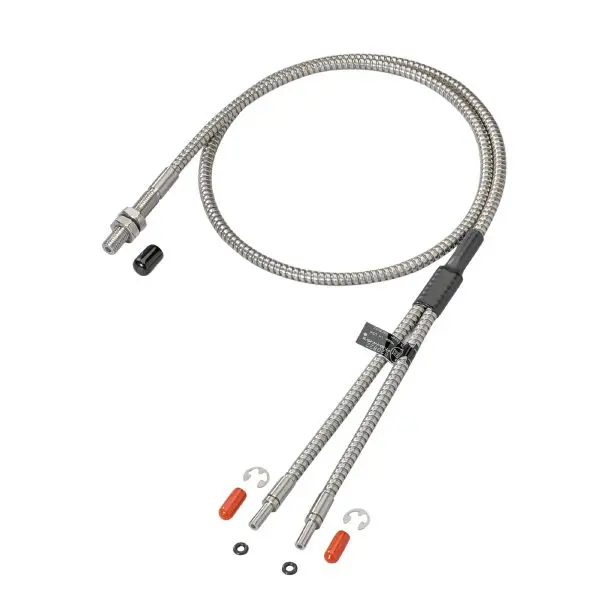

ifm Electronic E20493 Lichtwellenleiter Einweglichtschranke

Application

• Function principle: Through-beam sensor
• Application: High temperature resistance; Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals

Detection zone

• Range with fibre-optic amplifier type: OCF; OKF; OOF; OUF
OCF (High Power)
• Range of fibre optics [mm]: 1200
OKF
• Range of fibre optics [mm]: 120
OOF
• Range of fibre optics [mm]: 400
OUF
• Range of fibre optics [mm]: 120

Operating conditions

• Ambient temperature [°C]: -20...150

Mechanical data

• Weight [g]: 95.5
• Version of sensing head: angled
• Sensing head diameter [mm]: 3
• Sensing head length [mm]: 10
• Total length [mm]: 600
• Min. bending radius [mm]: 20
• Fibre arrangement:
• Fibre material: glass
• Fibre head material: stainless steel (1.4305 / 303)
• Fibre sheath material: metal silicone

Accessories

• Items supplied: Mounting clamp: 2, E20103

Remarks

• Pack quantity: 1 pcs.

E20493-00 — 22.09.2022 —
