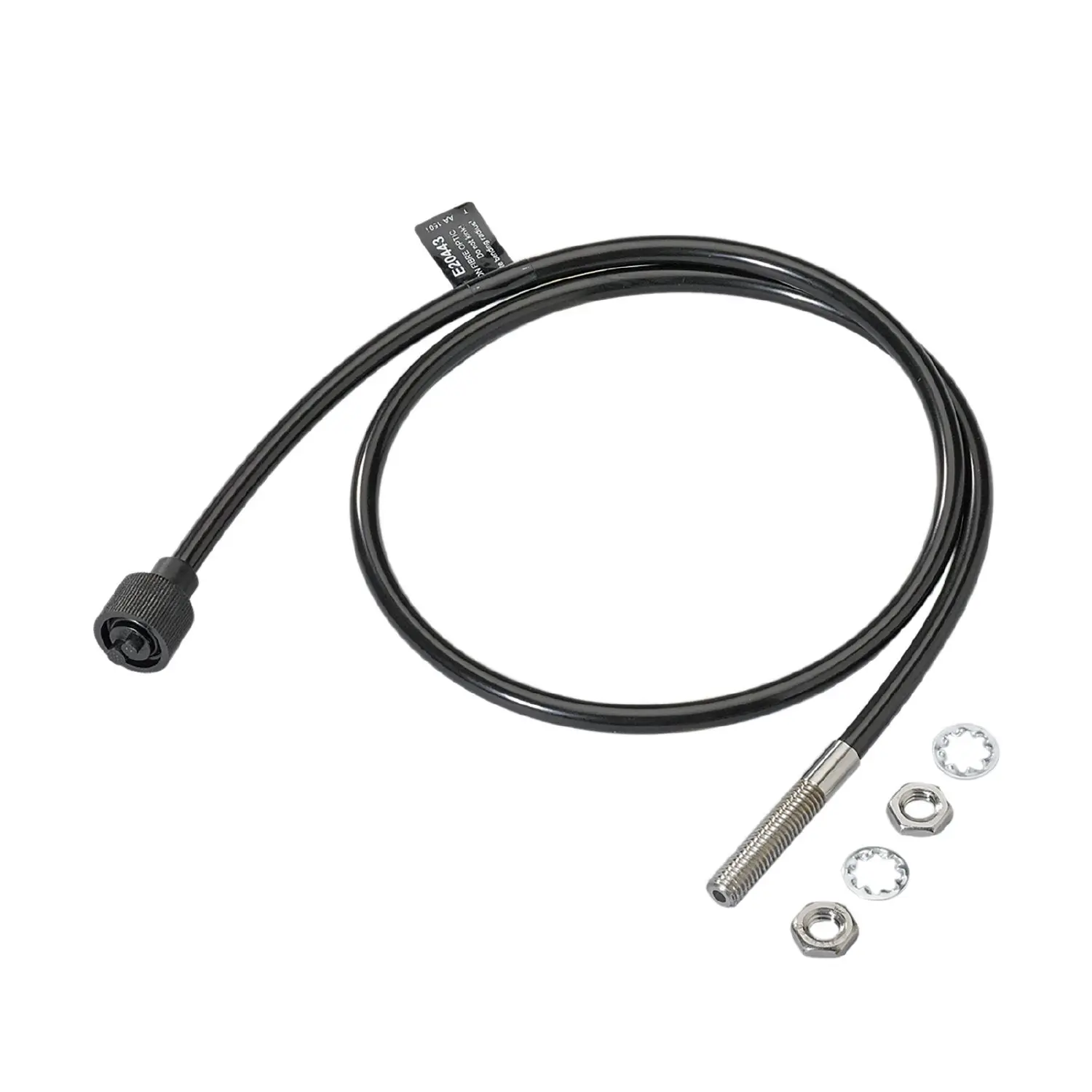

ifm Electronic E20443 Lichtwellenleiter Reflexlichttaster

Application

• Function principle: Diffuse reflection sensor
• Application: Small bending radius

Detection zone

• Range with fibre optic amplifier type: OKF; OUF; OOF
OKF
• Range fibre optics [mm]: 20
OOF
• Range fibre optics [mm]: 220
OUF
• Range fibre optics [mm]: 20

Operating conditions

• Ambient temperature [°C]: -20...80

Mechanical data

• Weight [g]: 48
• Version of sensing head: straight
• Sensing head thread: M6
• Sensing head length [mm]: 35
• Total length [mm]: 600
• Min. bending radius [mm]: 10
• Fibre arrangement:
• Materials: Adapter: ABS
• Fibre material: PMMA
• Fibre head material: stainless steel (1.4305 / 303)
• Fibre sheath material: PU

Accessories

• Items supplied: hexagon nuts: 2 x M6, stainless steel
, tooth lock washers: 2, knurled nut: 1 x M11

Remarks

• Pack quantity: 1 pcs.

E20443-00 — 06.03.2003 —
