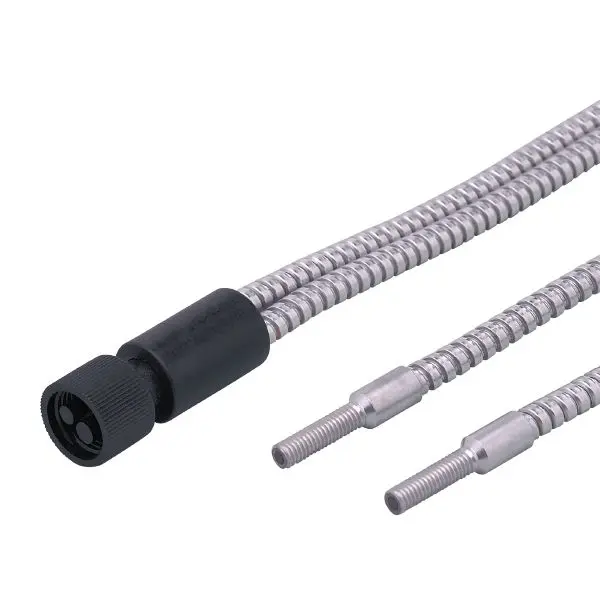

ifm Electronic E20152 Lichtwellenleiter Reflexlichttaster

Application

• Function principle: Diffuse reflection sensor
• Application: High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

• Range with fibre optic amplifier type: OIF
OIF
• Range fibre optics [mm]: 70

Operating conditions

• Ambient temperature [°C]: -40...290

Mechanical data

• Weight [g]: 94.5
• Version of sensing head: straight
• Sensing head thread: M8
• Total length [mm]: 600
• Min. bending radius [mm]: 30; (for fixed installation)
• Fibre arrangement:
• Materials: Adapter: PA
• Fibre material: glass
• Fibre head material: aluminium
• Fibre sheath material: aluminium

Accessories

• Items supplied: hexagon nuts: 2 x M8, stainless steel
, tooth lock washers: 2, knurled nut: 1 x M30

Remarks

• Pack quantity: 1 pcs.

E20152-00 — 06.03.2003 —
