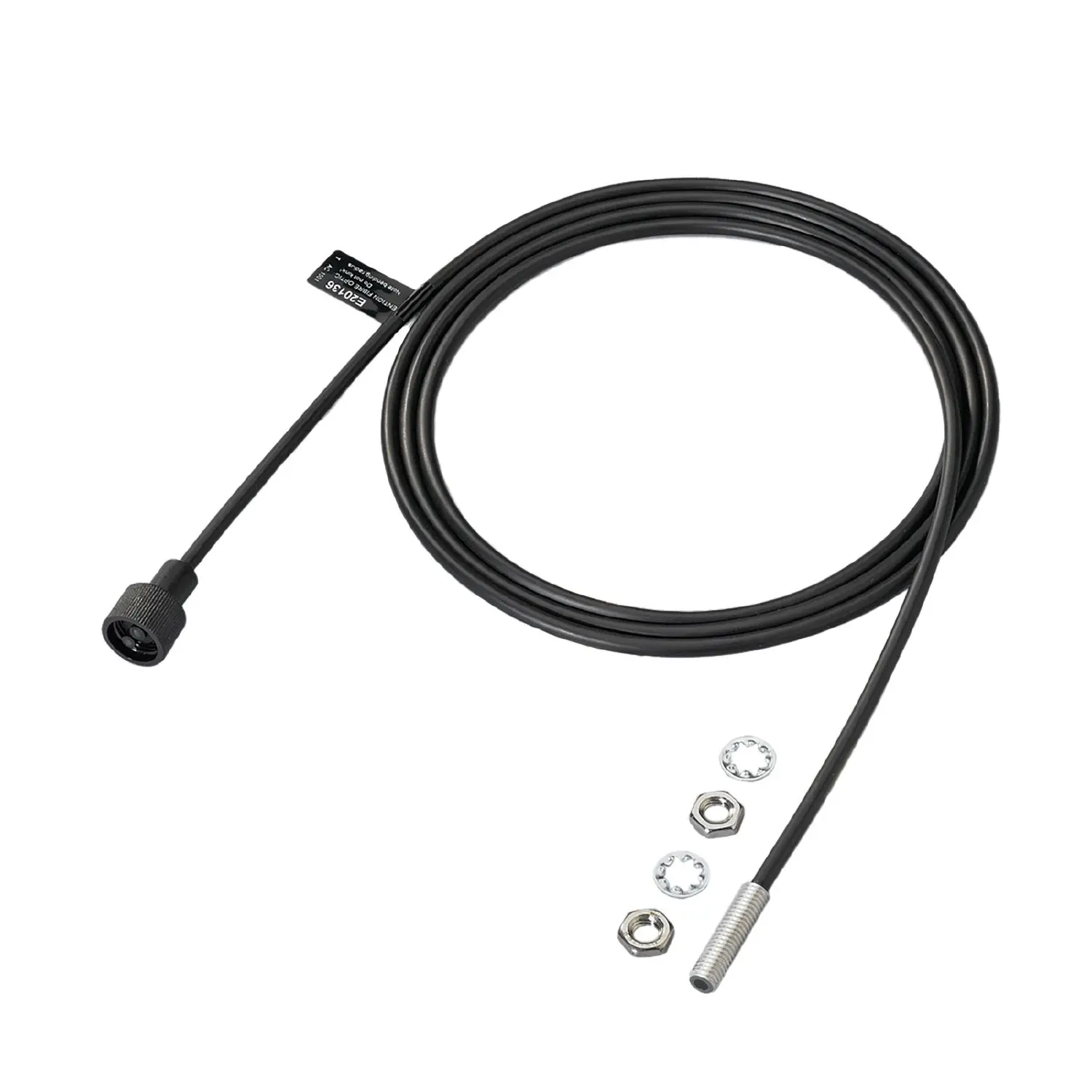

ifm Electronic E20136 Lichtwellenleiter Reflexlichttaster

Application

• Function principle: Diffuse reflection sensor
• Application: For use in industrial environments

Detection zone

• Range with fibre optic amplifier type: OKF; OUF; OOF
OKF
• Range fibre optics [mm]: 36
OOF
• Range fibre optics [mm]: 180
OUF
• Range fibre optics [mm]: 36

Operating conditions

• Ambient temperature [°C]: -20...80

Mechanical data

• Weight [g]: 60.5
• Version of sensing head: straight
• Sensing head thread: M6
• Sensing head length [mm]: 25
• Total length [mm]: 1500
• Min. bending radius [mm]: 20
• Fibre arrangement:
• Materials: Adapter: PPE
• Fibre material: glass
• Fibre head material: aluminium
• Fibre sheath material: PVC

Accessories

• Items supplied: hexagon nuts: 2 x M6, stainless steel
, tooth lock washers: 2, knurled nut: 1 x M11

Remarks

• Pack quantity: 1 pcs.

E20136-00 — 06.03.2003 —
