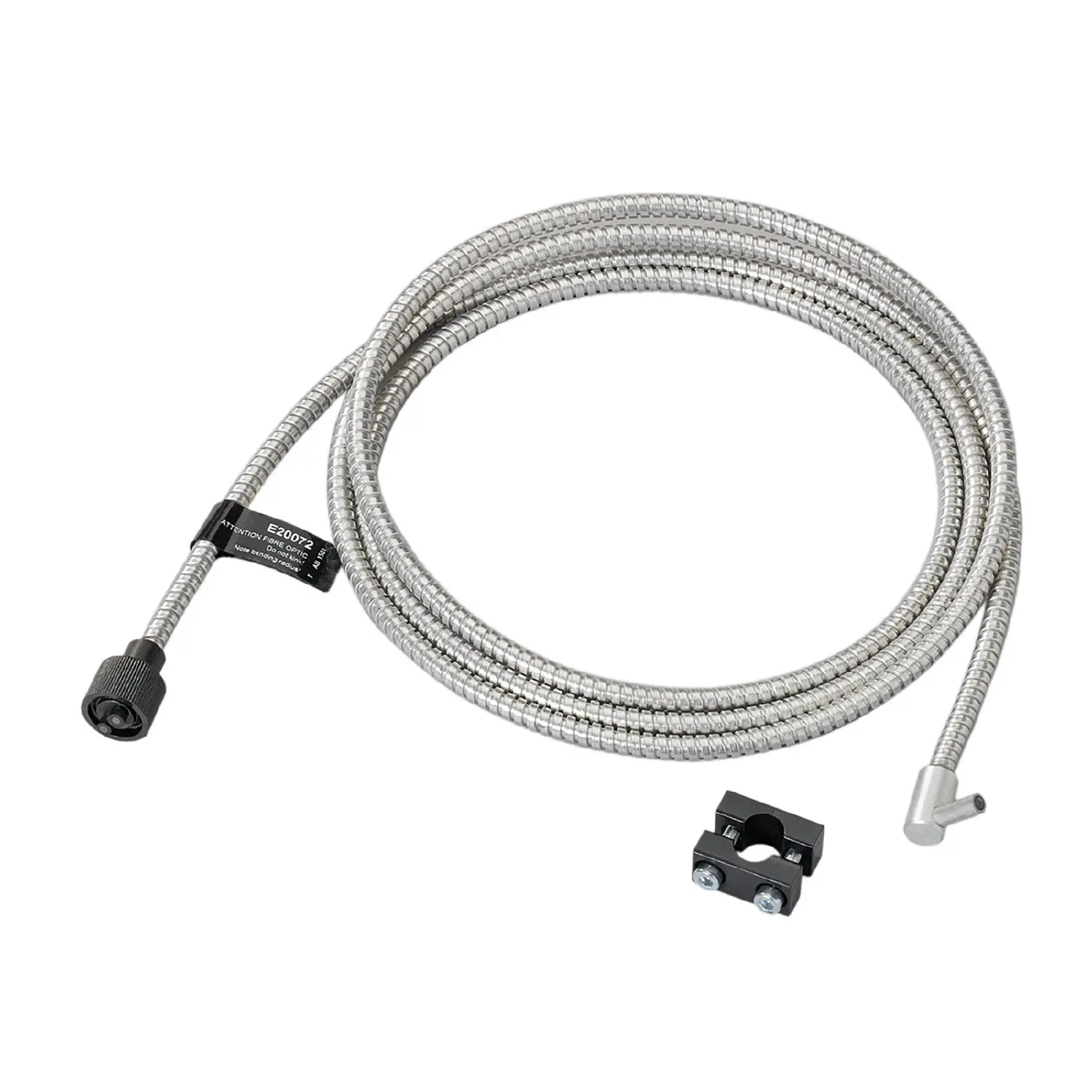

ifm Electronic E20072 Lichtwellenleiter Reflexlichttaster

Application

• Function principle: Diffuse reflection sensor
• Application: High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

• Range with fibre optic amplifier type: OKF; OUF; OOF
OKF
• Range fibre optics [mm]: 36
OOF
• Range fibre optics [mm]: 180
OUF
• Range fibre optics [mm]: 36

Operating conditions

• Ambient temperature [°C]: -40...290

Mechanical data

• Weight [g]: 72
• Version of sensing head: angled
• Sensing head diameter [mm]: 4
• Sensing head length [mm]: 10
• Total length [mm]: 1500
• Min. bending radius [mm]: 20; (for fixed installation)
• Fibre arrangement:
• Materials: Adapter: ABS
• Fibre material: glass
• Fibre head material: aluminium
• Fibre sheath material: aluminium

Accessories

• Items supplied: Mounting clamp:, E10221

Remarks

• Pack quantity: 1 pcs.

E20072-00 — 04.06.2003 —
