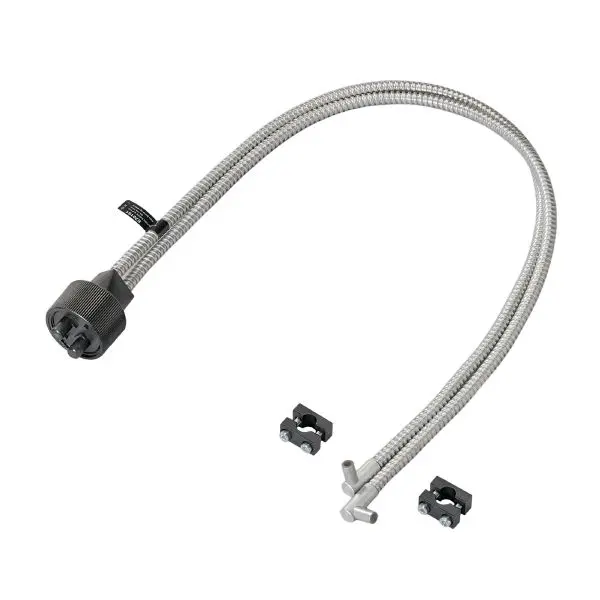

ifm Electronic E20071 Lichtwellenleiter Reflexlichttaster

Application

• Function principle: Diffuse reflection sensor
• Application: High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

• Range with fibre optic amplifier type: OKF; OUF; OOF; OCF
OCF
• Range fibre optics [mm]: 330
OKF
• Range fibre optics [mm]: 40
OOF
• Range fibre optics [mm]: 200
OUF
• Range fibre optics [mm]: 40

Operating conditions

• Ambient temperature [°C]: -40...290

Mechanical data

• Weight [g]: 59.5
• Version of sensing head: straight
• Sensing head thread: M6
• Sensing head length [mm]: 35
• Total length [mm]: 1000
• Min. bending radius [mm]: 20; (for fixed installation)
• Fibre arrangement:
• Materials: Adapter: ABS
• Fibre material: glass
• Fibre head material: aluminium
• Fibre sheath material: aluminium

Accessories

• Items supplied: hexagon nuts: 2 x M6, stainless steel
, tooth lock washers: 2, knurled nut: 1 x M11

Remarks

• Pack quantity: 1 pcs.

E20071-00 — 06.03.2003 —
