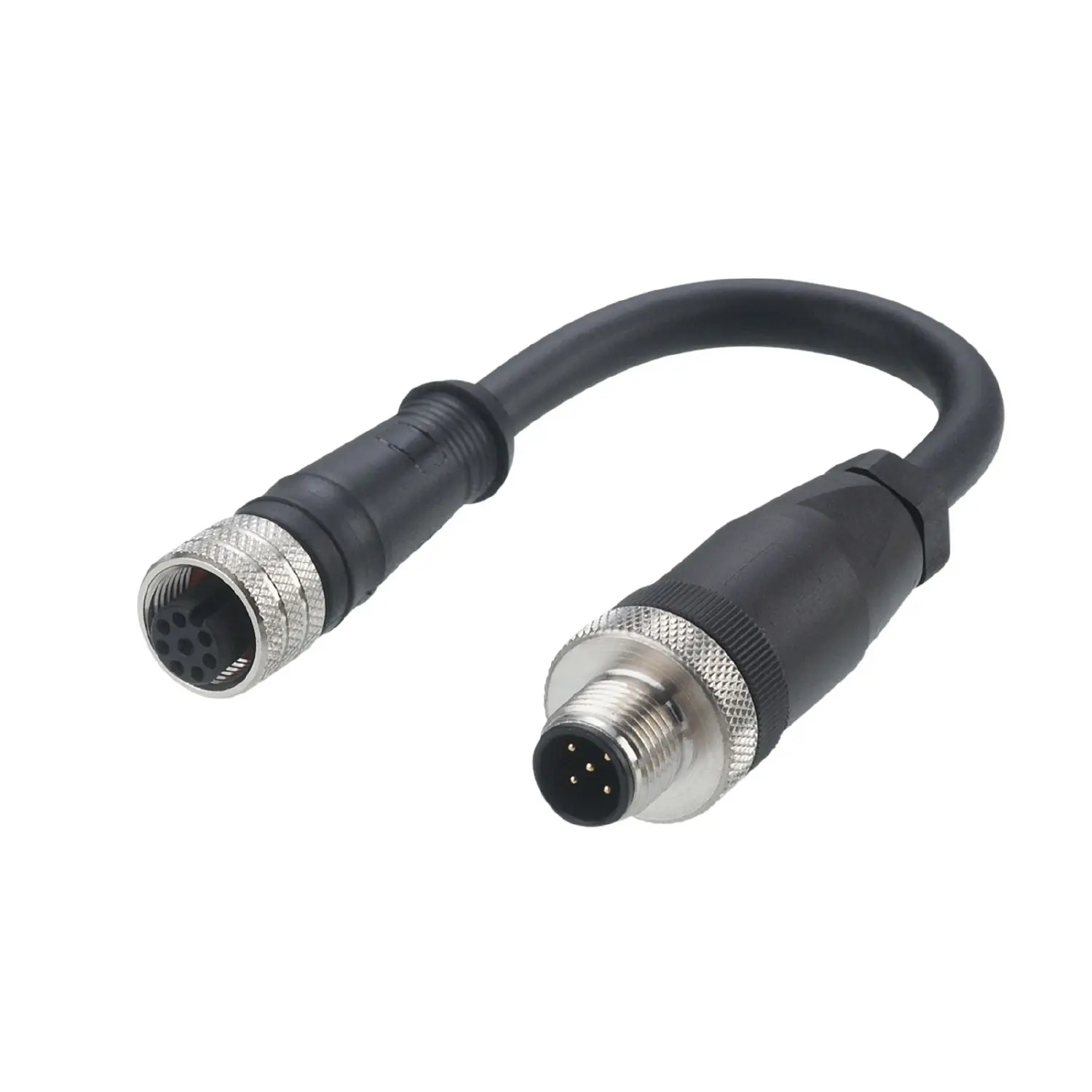

ifm Electronic E12784 Verbindungskabel

Application

• Special feature: Free from silicone; Halogen-free; Gold-plated contacts
• Application: use on safety light grids and PROFIsafe IO-Link modules
• Free from silicone: yes

Electrical data

• Operating voltage [V]: < 36 DC
• Protection class: II
• Max. current load total [A]: 2; (...40 °C)

Operating conditions

• Protection: IP 67

Mechanical data

• Weight [g]: 47
• Moulded-body material: PA / TPU
• Material nut: brass, nickel-plated

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• : Connector: 1 x M12, straight; coding: A; Moulded body: PA, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...0.7 Nm

Electrical connection

• Connection: Cable: 0.1 m, PUR, Halogen-free, black, Ø 6.6 mm; 8 x 0.25 mm²

Electrical connection - socket

• : Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

E12784-00 — 07.07.2022 —
