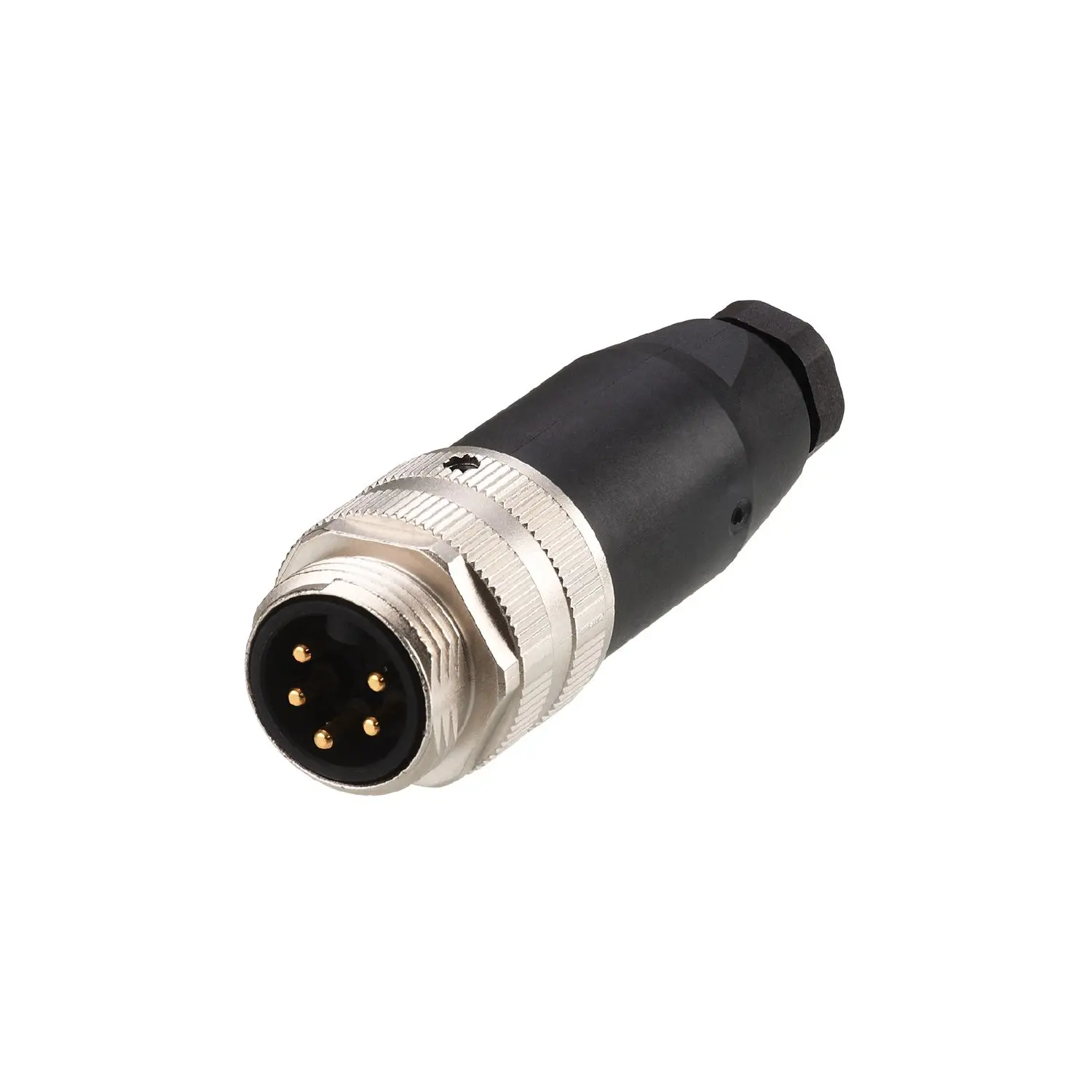

ifm Electronic E12776 Konfektionierbarer Stecker

Application

• Special feature: Gold-plated contacts

Electrical data

• Operating voltage [V]: < 300 AC/DC
• Protection class: II
• Max. current load total [A]: 9

Operating conditions

• Ambient temperature [°C]: -25...85
• Protection: IP 67

Mechanical data

• Weight [g]: 54.7
• Moulded-body material: PBT
• Material nut: diecast zinc, nickel-plated

Remarks

• Remarks: Pin 4 leading
• Pack quantity: 1 pcs.

Electrical connection

• : screw terminals: ...1.5 mm²; Cable sheath: Ø 6...8 mm; AWG 16

Electrical connection - plug

• Connection: Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc, nickel-plated; Contacts: gold-plated

E12776-00 — 27.07.2023 —
