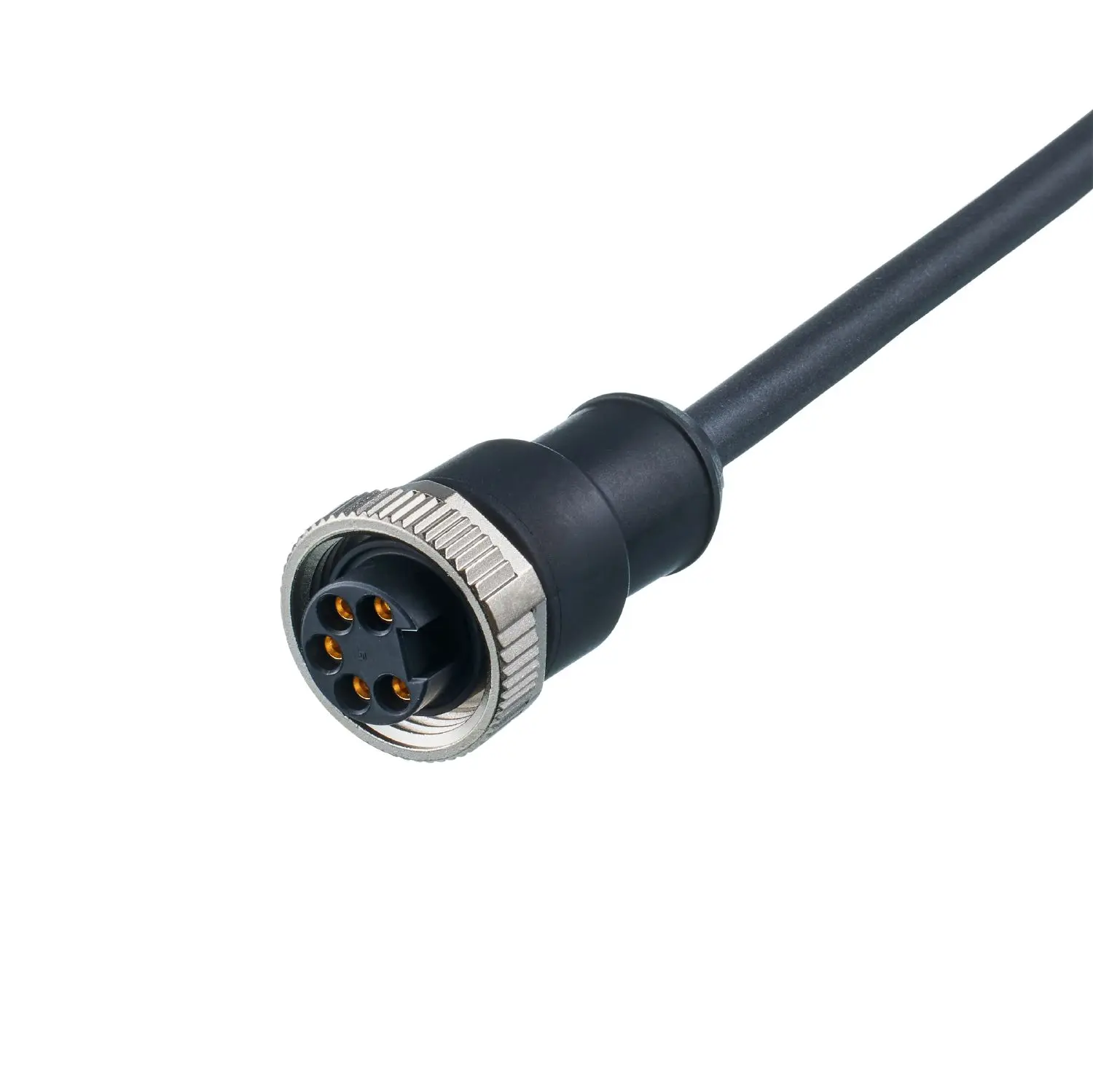

ifm Electronic E12773 Anschlusskabel mit Buchse

Application

• Special feature: Gold-plated contacts; Drag chain suitability

Electrical data

• Operating voltage [V]: < 400 AC/DC
• Protection class: II
• Max. current load total [A]: 5

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 68

Mechanical data

• Weight [g]: 390
• Dimensions [mm]: 26 x 26 x 49.9
• Moulded-body material: PUR
• Material nut: diecast zinc
• Drag chain suitability: yes
• Drag chain suitability: bending radius for flexible use, min. 7.5 x cable diameter
, travel speed, max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² , bending cycles, > 5 Mio.

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• : Cable: 5 m, PUR, black, Ø 7.3 mm; 5 x 0.75 mm²

Electrical connection - socket

• Connection: Connector: 1 x 7/8", straight; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated

E12773-00 — 02.09.2022 —
