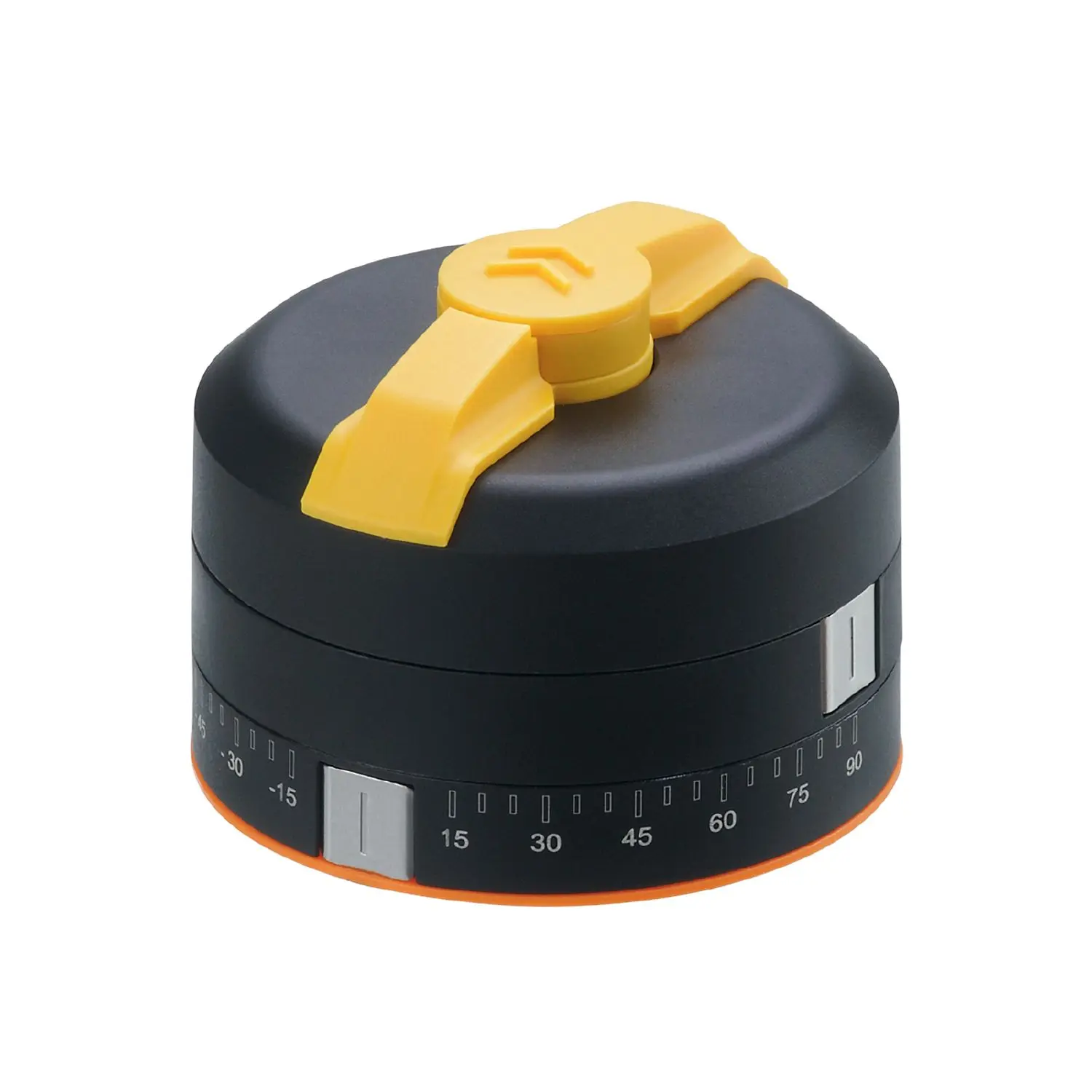

ifm Electronic E12725 Schaltnocken für Schwenkantriebe

Application

• Design: for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337

Mechanical data

• Weight [g]: 81.1
• Target puck diameter [mm]: 65.6
• Hole spacing [mm]: 80
• Shaft height of valve drive [mm]: 30
• Materials: target puck: PA 6 black; metal parts: stainless steel; Position indicator: PA 6 yellow
• Tightening torque [Nm]: 2.5...3

Accessories

• Items supplied: half-round head screw: 1 x M6 x 25, stainless steel EN ISO 7380-2:2011

Remarks

• Pack quantity: 1 pcs.

E12725-00 — 13.11.2020 —
