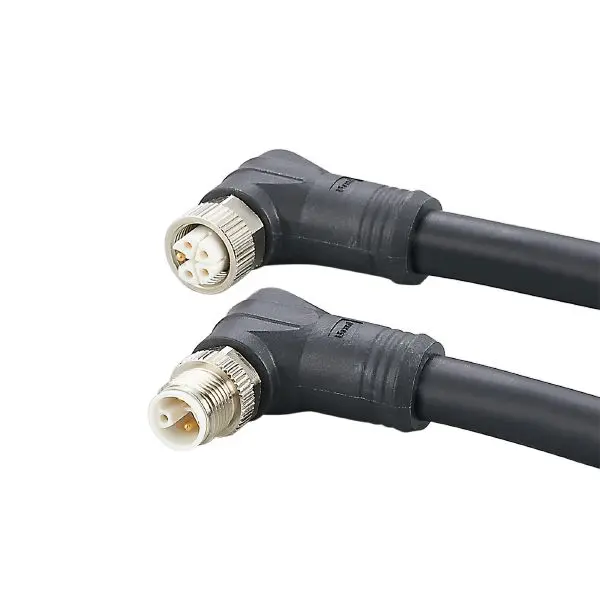

ifm Electronic E12666 Verbindungskabel

Application

• Special feature: Gold-plated contacts
• Design: power cable, L-coded

Electrical data

• Operating voltage [V]: 64 DC
• Max. current load total [A]: 16

Operating conditions

• Ambient temperature [°C]: -40...90
• Protection: IP 67

Mechanical data

• Weight [g]: 135.6
• Materials: PP
• Moulded-body material: TPE
• Material nut: brass, nickel-plated

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• : Cable: 0.5 m, PUR, black, Ø 11.3 mm; 5 x 2.5 mm²

Electrical connection - plug

• : Connector: 1 x M12, angled; coding: L; Moulded body: TPE; Locking: brass, nickel-plated; Contacts: gold-plated

E12666-00 — 13.11.2019 —
