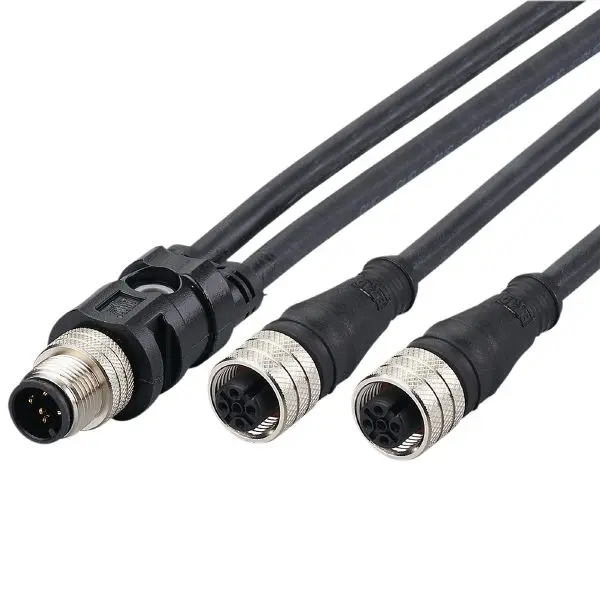

ifm Electronic E12640 Y Verbindungskabel

Application

• Special feature: Free from silicone
• Free from silicone: yes

Electrical data

• Operating voltage [V]: < 30 AC / < 36 DC
• Protection class: III
• Max. current load total [A]: 2

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Mechanical data

• Weight [g]: 51.88
• Moulded-body material: TPU
• Material nut: brass, nickel-plated
• Sealing material: FPM
• Number of ports splitter box : 2

Accessories

• Accessory required: E12639

Remarks

• Pack quantity: 1 pcs.

Electrical connection - socket C

• Connection: Connector: 1 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Sealing: FPM; Tightening torque: 1 Nm

Electrical connection - socket B

• : Cable: 0.15 m, PVC, black, Ø 5 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm )
• : Connector: 1 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Sealing: FPM; Tightening torque: 1 Nm

Electrical connection - plug A

• : Cable: 0.15 m, PVC, black, Ø 5 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm )
• : Connector: 1 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Sealing: FPM; Tightening torque: 1 Nm

E12640-01 — 18.01.2024 —
