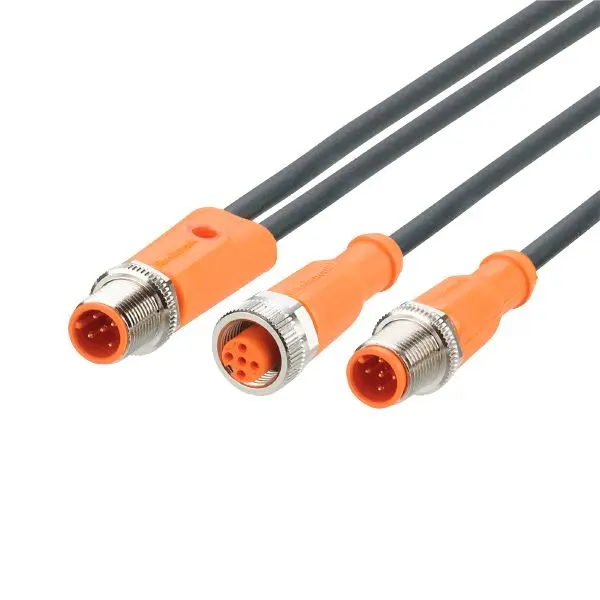

ifm Electronic E12548 Y Verbindungskabel

Application

• Special feature: Free from silicone; Halogen-free; Drag chain suitability
• Free from silicone: yes

Electrical data

• Operating voltage [V]: 8...32 DC
• Protection class: III
• Max. current load total [A]: 4

Operating conditions

• Ambient temperature [°C]: -40...85
• Ambient temperature (moving) [°C]: -20...85
• Protection: IP 67; (mating connector plugged in)

Mechanical data

• Weight [g]: 277.799
• Dimensions [mm]: 24 x 24 x 54
• Materials: PA
• Number of ports splitter box : 2
• Drag chain suitability: yes
• Drag chain suitability: bending radius for flexible use, min. 10 x cable diameter
, travel speed, max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² , bending cycles, > 5 Mio., torsional strain, ± 180 °/m

Remarks

• Pack quantity: 1 pcs.

Electrical connection - 1-2-3

• : Cable: 5 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm )

Electrical connection - 4-5-6

• : Cable: 5 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm )

Electrical connection - socket

• Connection: Connector: 1 x DEUTSCH connector, straight; Contacts: nickel-plated; Tightening torque: 0.6...1.5 Nm

E12548-00 — 05.11.2020 —
