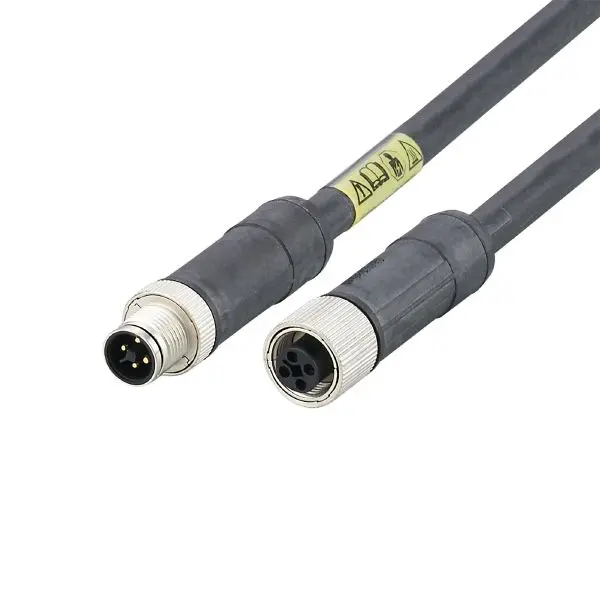

ifm Electronic E12428 Verbindungskabel

Application

• Special feature: Gold-plated contacts; Drag chain suitability
• Design: power cable, T-coded

Electrical data

• Operating voltage [V]: < 60 DC
• Max. current load total [A]: 12

Operating conditions

• Ambient temperature [°C]: -25...85
• Protection: IP 67

Mechanical data

• Weight [g]: 1077.5
• Dimensions [mm]: 15.4 x 15.4 x 54.8
• Materials: PUR
• Moulded-body material: PUR
• Material nut: diecast zinc, nickel-plated
• Drag chain suitability: yes
• Drag chain suitability: bending radius for flexible use, min. 10 x cable diameter
, bending radius for fixed installation, min. 5 x cable diameter, travel speed, max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s², bending cycles, > 4 Mio.

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• : Connector: 1 x M12, straight; coding: T; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated

Electrical connection

• Connection: Cable: 10 m, PUR, black; 4 x 1.5 mm²

Electrical connection - socket

• : Connector: 1 x M12, straight; coding: T; Moulded body: PUR

E12428-01 — 15.02.2022 —
