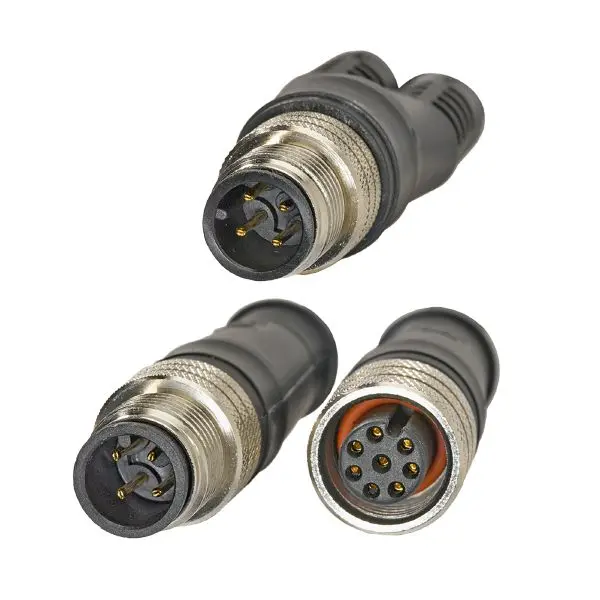

ifm Electronic E12405 Y Verbindungskabel

Application

• Special feature: Halogen-free

Electrical data

• Operating voltage [V]: 10...30 DC
• Max. current load total [A]: 4

Operating conditions

• Ambient temperature [°C]: -25...90
• Protection: IP 67

Mechanical data

• Weight [g]: 65
• Materials: TPU
• Moulded-body material: TPU
• Material nut: brass, nickel-plated
• Number of ports splitter box : 2

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• Connection: Cable: 0.25 m, PUR, Halogen-free, black, Ø 5.0 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm )
• Connection: Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated

E12405-01 — 15.12.2022 —
