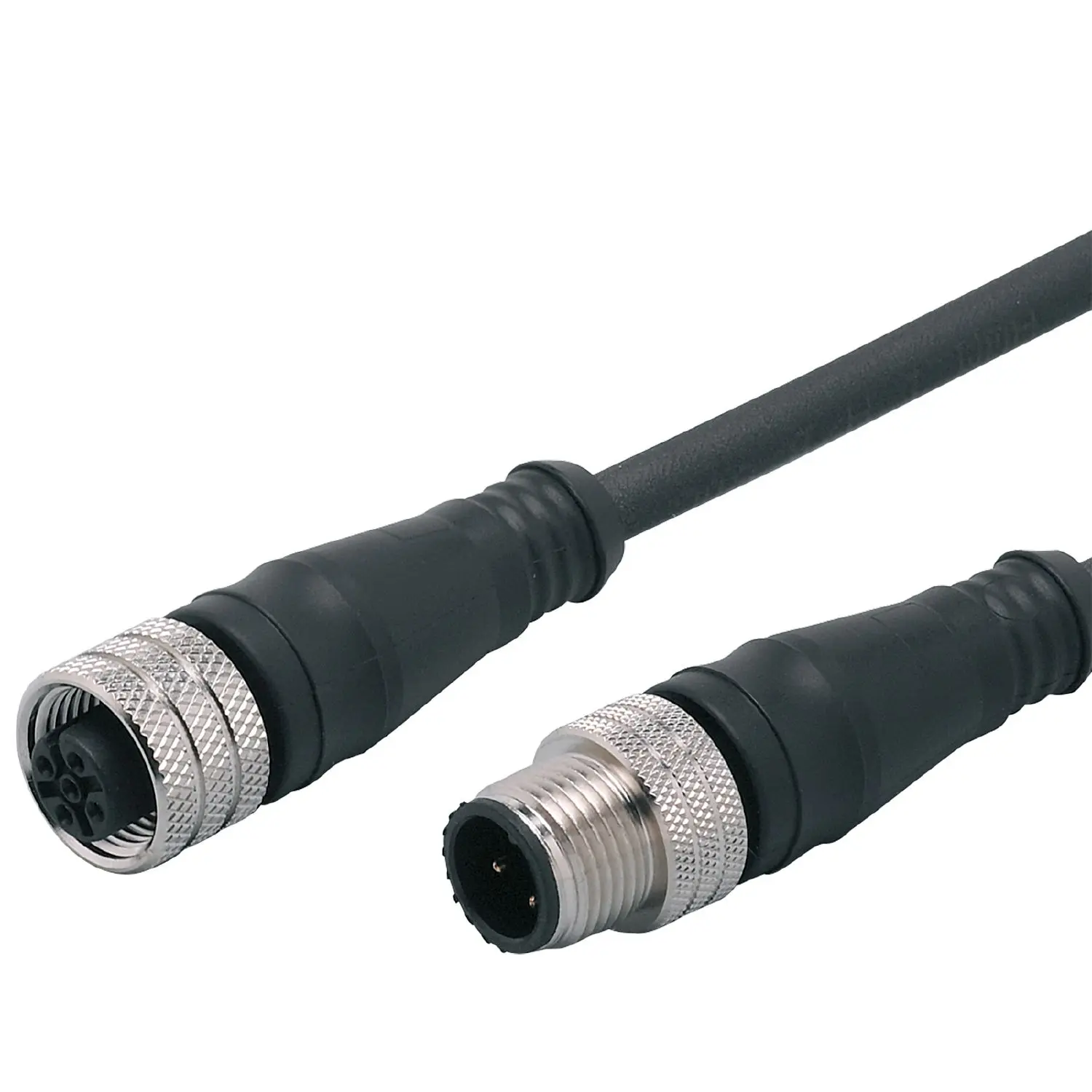

ifm Electronic E12383 Verbindungskabel

Application

• Special feature: Screened cable

Electrical data

• Operating voltage [V]: < 30 AC / < 36 DC

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 68

Mechanical data

• Weight [g]: 571
• Materials: PUR
• Moulded-body material: PUR
• Material nut: brass, nickel-plated

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• : Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected

Electrical connection

• Connection: Cable: 10 m, PUR, black, Ø 6.8 mm, shielded; 8 x 0.25 mm²

Electrical connection - socket

• : Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected

E12383-01 — 17.07.2023 —
