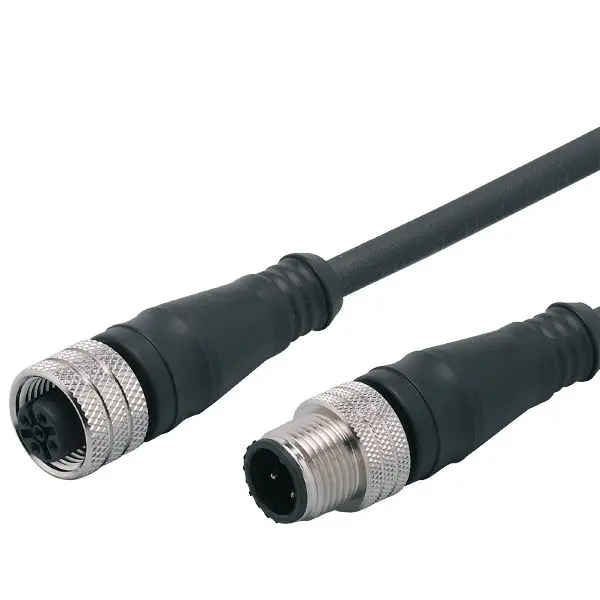

ifm Electronic E12281 Verbindungskabel

Application

• Special feature: Halogen-free

Electrical data

• Operating voltage [V]: < 30 AC / < 36 DC

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 68

Mechanical data

• Weight [g]: 152.3
• Materials: PUR
• Moulded-body material: PUR
• Material nut: brass, nickel-plated

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• : Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm

Electrical connection

• Connection: Cable: 2 m, PUR, Halogen-free, black, Ø 6.8 mm; 8 x 0.25 mm²

Electrical connection - socket

• : Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm

E12281-00 — 04.03.2011 —
