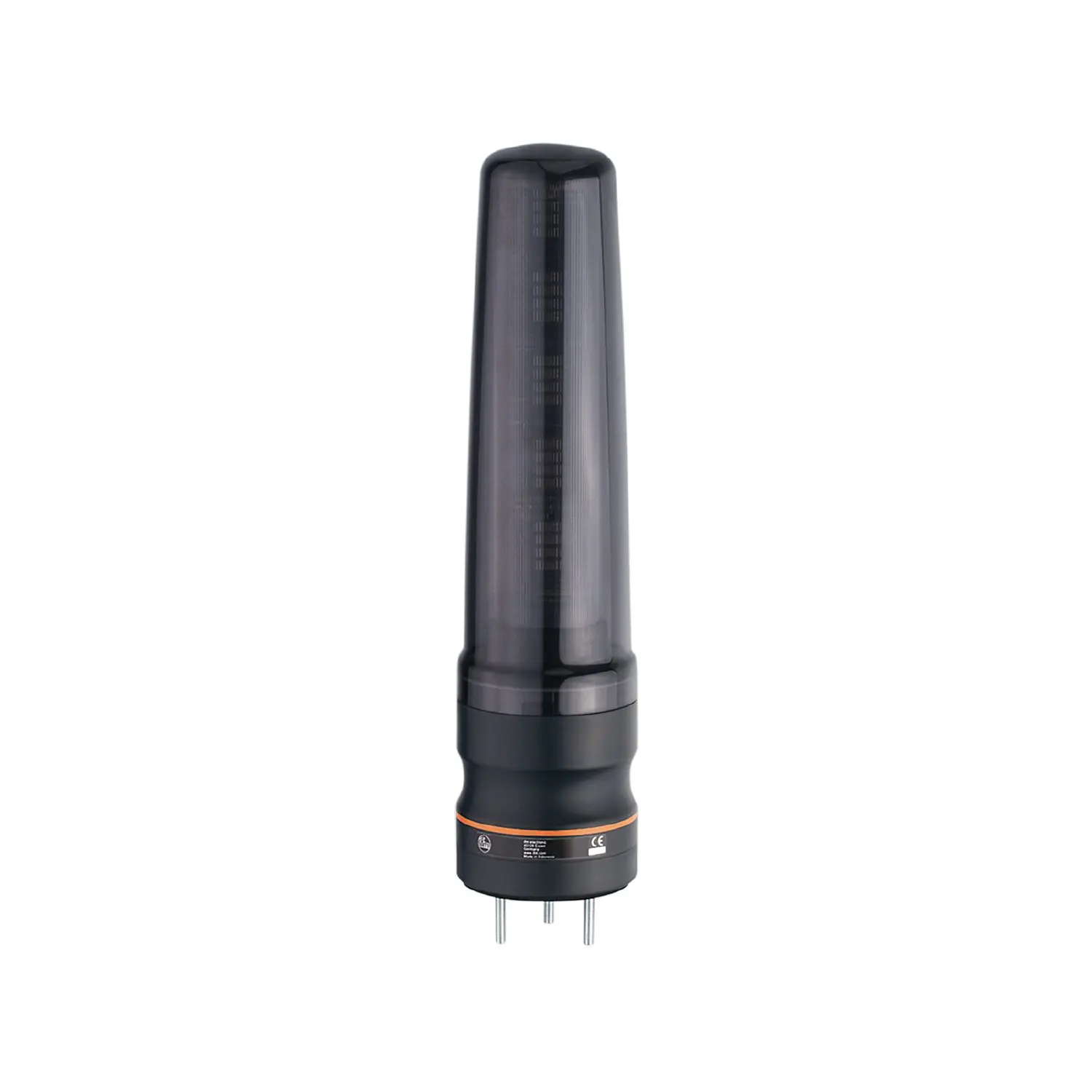

ifm Electronic DV2930 20 LED Signalleuchte

Application

• Application: signalling machine conditions

Electrical data

• Operating voltage [V]: 18...30 DC; (to SELV/PELV)
• Nominal voltage DC [V]: 24
• Current consumption [mA]: < 200
• Switch-on peak current [mA]: 500; (2 ms; 400 mA: 50 ms)

Inputs

• Input current High [mA]: 6

Interfaces

• Communication interface: IO-Link
• Transmission type: COM2 (38,4 kBaud)
• IO-Link revision: 1.1
• SDCI standard: IEC 61131-9
• SIO mode: yes
• Required master port type: A
• Min. process cycle time [ms]: 3.2
• Supported DeviceIDs:
  • Type of operation, DeviceID: default, 1533

  Operating conditions

  • Ambient temperature [°C]: -25...50
  • Storage temperature [°C]: -40...75
  • Max. relative air humidity [%]: 90
  • Air pressure [kPa]: < 106
  • Max. height above sea level [m]: 2000
  • Protection: IP 54

  Mechanical data

  • Weight [g]: 493
  • Dimensions [mm]: Ø 70 / L = 284
  • Materials: housing: ABS; lens: PC

  Displays / operating elements

  • Display: LED segment, 20 x LEDs, multi-colour
  • Acoustic signal: buzzer
  • Max. sound pressure [dB]: 85

  Accessories

  • Accessories (optional): mounting base, E89060
  , wall bracket, E89061, Mounting adapter, E89063, bracket with lateral cable entry, E89064, mounting tube, E89065, mounting tube, E89066, mounting tube, E89067

  Remarks

  • Remarks: For further information please see the operating instructions.
  • Pack quantity: 1 pcs.

  Electrical connection - plug

  • : Connector: M12; coding: A
