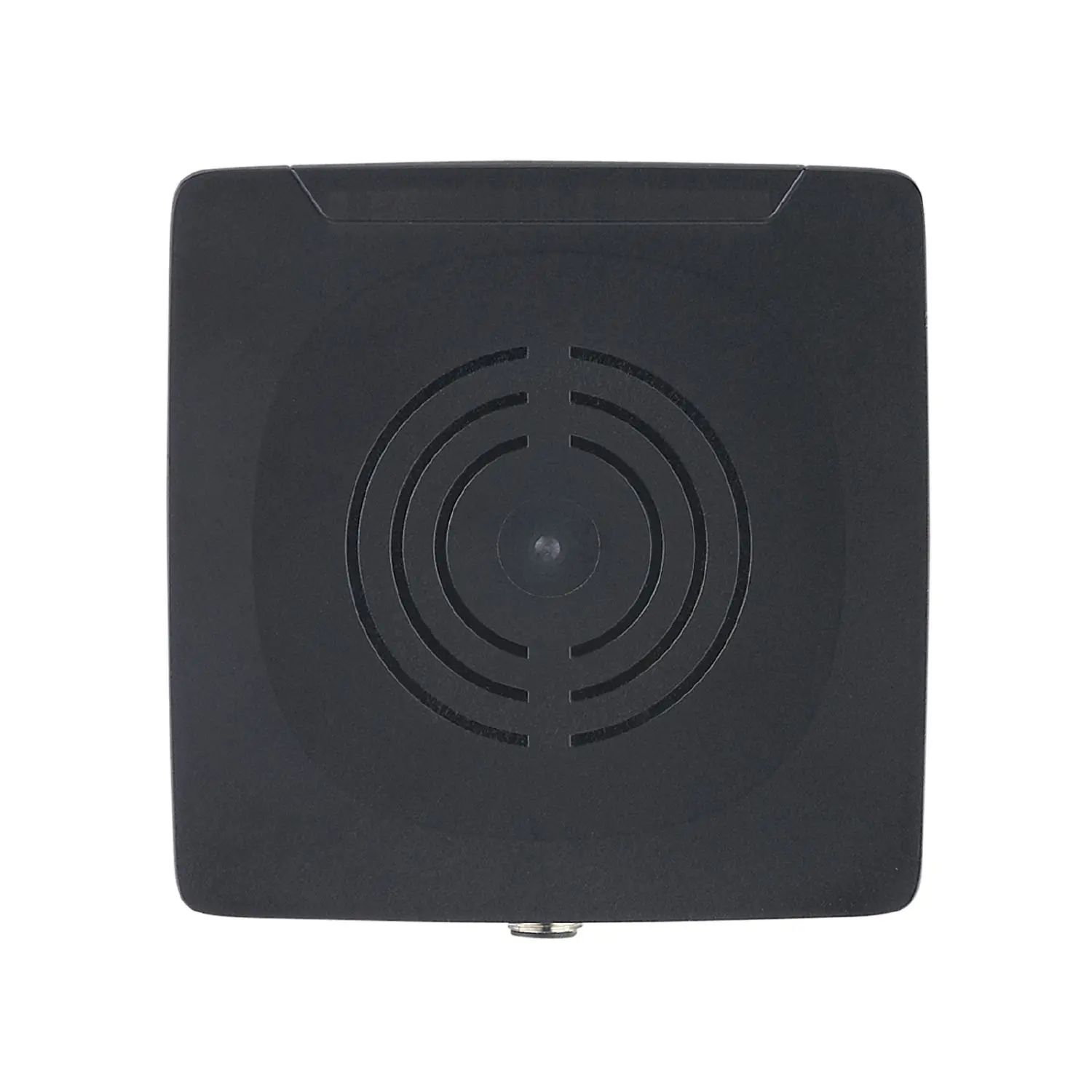

ifm Electronic DTI911 RFID Kompaktgerät UHF

Application

• Application: detection of objects on transport equipment
• Radio approval for: China

Electrical data

• Operating voltage [V]: 18...30 DC
• Current consumption [mA]: < 250
• Power consumption [W]: 4.8
• Protection class: III
• Operating frequency [MHz]: 920,5...924,5
• RFID standard: EPC Class1 GEN2/ISO 18000-63
• Transmission power EIRP [mW]: 200; (maximum: 250 mW)

Interfaces

• Communication interface: IO-Link
• Transmission type: COM3 (230,4 kBaud)
• IO-Link revision: 1.1
• Supported DeviceIDs:
  • Type of operation, DeviceID: default, 1418

  Operating conditions

  • Ambient temperature [°C]: -20...60
  • Storage temperature [°C]: -25...80
  • Protection: IP 67

  Tests / approvals

  • Shock resistance: EN 60068-2-27, 40 g 6 ms / bump
  , EN 60068-2-27, 50 g 11 ms / single shock
  • Vibration resistance: EN 60068-2-6, 2 g 10...150 Hz
  • Electrical protection: EN 61010-2-201, electrical supply only via PELV circuits

  Mechanical data

  • Weight [g]: 635.5
  • Dimensions [mm]: 120 x 50 x 113
  • Materials: PBT; PC; stainless steel; aluminium

  Displays / operating elements

  • Display: operation, 1 x LED, green
  , tag communication, 4 x LED bar display, yellow number of tags in the field

  Remarks

  • Pack quantity: 1 pcs.

  Electrical connection

  • : Connector: 1 x M12; coding: A
  DTI911-00 — 05.07.2023 —
