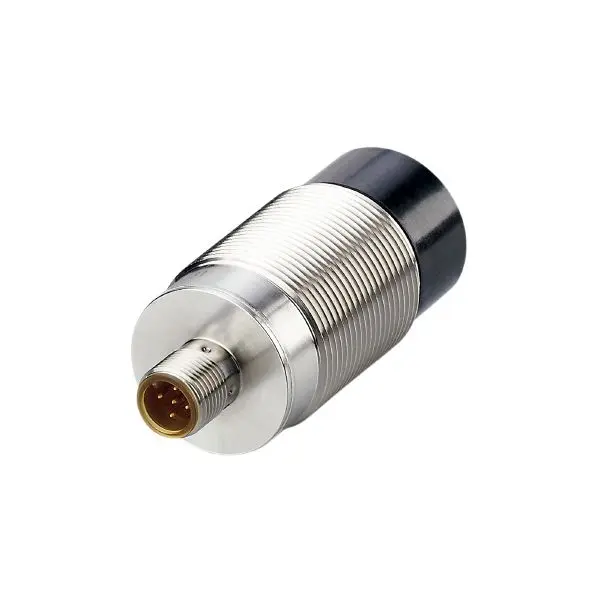

ifm Electronic DTI424 RFID Schreib Lesekopf HF

Application

• Application: detection of objects on transport equipment
• Radio approval for: USA; Canada; EU/RED; Australia; China; Singapore; Japan; Taiwan; India
• Note on radio approval: The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

• Operating voltage [V]: 19.2...28.8 DC
• Current consumption [mA]: < 50
• Protection class: III
• Operating frequency [MHz]: 13,56
• RFID standard: ISO 15693

Detection zone

• Distance to the ID tag [mm]: referred to 30 mm coin tag; I-CODE SLI, :, ≤ 16

Interfaces

• Communication interface: IO-Link
• Transmission type: COM2 (38,4 kBaud)
• IO-Link revision: 1.1
• SDCI standard: IEC 61131-9
• Profiles: Smart Sensor: Device Identification
• SIO mode: no
• Required master port type: A
• Min. process cycle time [ms]: 22
• Supported DeviceIDs:
  • Type of operation, DeviceID: default, 967

  Operating conditions

  • Ambient temperature [°C]: -20...60
  • Storage temperature [°C]: -25...80
  • Protection: IP 67; IP 69K

  Tests / approvals

  • Shock resistance: EN 60068-2-27, 40 g 6 ms / repetitive
  , EN 60068-2-27, 50 g 11 ms / not repetitive
  • Vibration resistance: EN 60068-2-6, 20 g 10...2000 Hz
  • Electrical protection: EN 61010-2-201 : 2013 +AC:2013,

  Mechanical data

  • Weight [g]: 108.75
  • Housing: cylindrical
  • Mounting: flush mountable
  • Dimensions [mm]: M18 x 1 / L = 70
  • Thread designation: M18 x 1
  • Materials: housing: stainless steel (1.4301 / 304); Protective cover: PPS; plug insert: PEI

  Displays / operating elements

  • Display: operation, 1 x LED, green
  , tag communication, 1 x LED, yellow

  Accessories

  • Items supplied: nut 2 x M18
