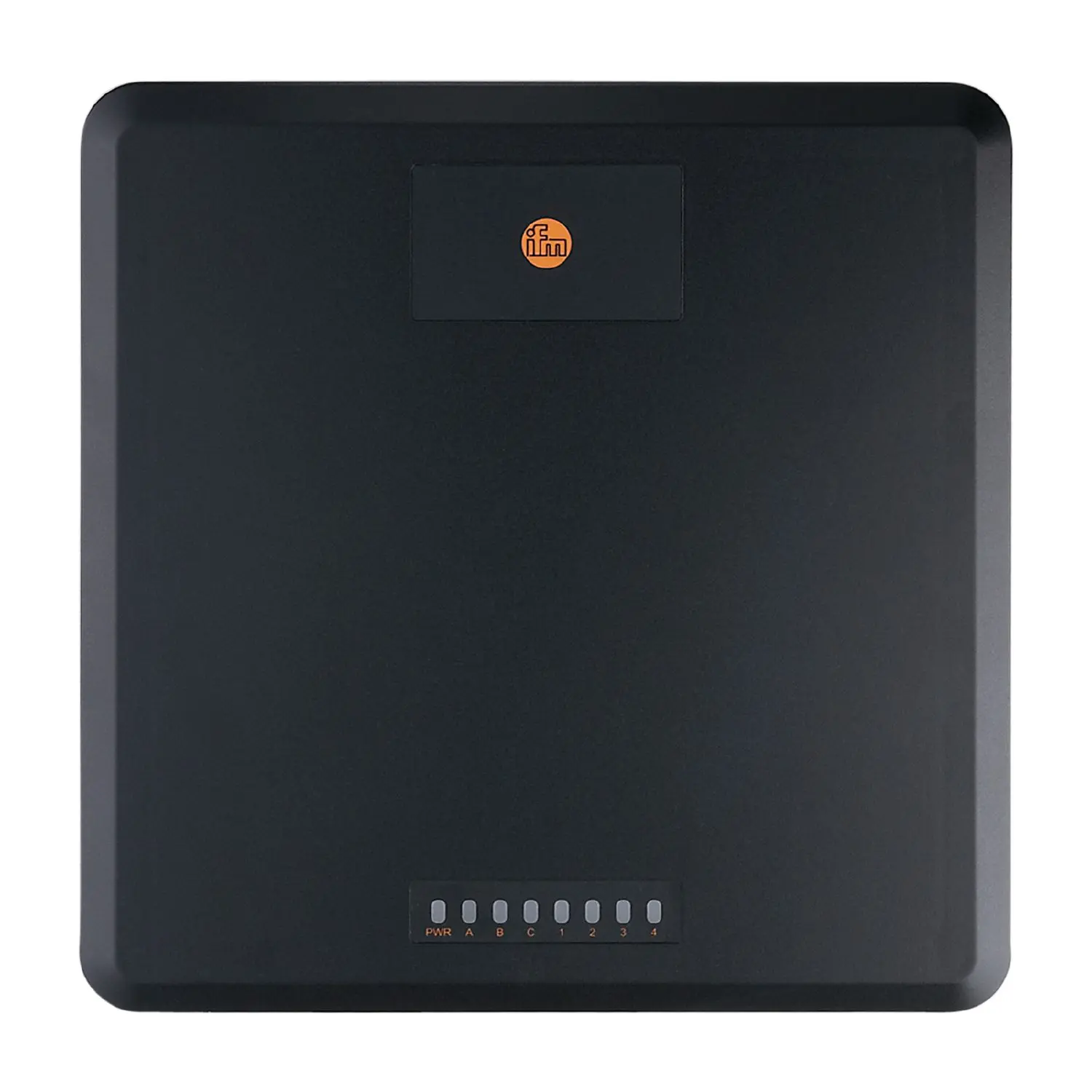

ifm Electronic DTE930 RFID Auswerteeinheit UHF

Application

• Radio approval for: USA; Canada; Australia; Singapore; Malaysia; Indonesia; Mexico; South Africa

Electrical data

• Operating voltage [V]: 24 DC
• Current consumption [mA]: 700
• Operating frequency [MHz]: 902...928 (FCC), 920...926 (ACMA), 920...923 (SDPPI ) max. 400 mW EIRP, 919...923 (SIRIM), 920...925 (IMDA), 915,3...920,9 (ICASA)
• Antenna connections: 4; (TNC Reverse)
• RFID standard: EPC Class1 GEN2/ISO 18000-6C
• Transmission power ERP [mW]: 2000; (parameterisable in steps: 1 dB 50mW ... 2W)
• Impedance [Ω]: 50

Inputs / outputs

• Number of inputs and outputs: Number of digital inputs: 4; Number of digital outputs: 4

Inputs

• Number of digital inputs: 4

Outputs

• Number of digital outputs: 4
• Max. current load per output [mA]: 500; (max.)

Detection zone

• RSSI threshold: adjustable via software

Interfaces

• Communication interface: Ethernet
Ethernet - EtherNet/IP
• Protocol: EtherNet/IP
• Usage type: data transmission
Ethernet - TCP/IP
• Protocol: TCP/IP
• Usage type: parameter setting; data transmission

Operating conditions

• Ambient temperature [°C]: -20...55
• Storage temperature [°C]: -40...85
• Protection: IP 67

Tests / approvals

• Radio approval: FCC Part15
• UL approval: Ta, -20...60 °C
, Enclosure type, IP67 , power supply, SELV , File number UL, E347020

Mechanical data

• Weight [g]: 3417.8
• Dimensions [mm]: 300 x 300 x 71
• Materials: housing: aluminium; Protective cover: plastics; TNC socket: brass / PTFE; connector: brass / plastic

Displays / operating elements

• Display: operation, 1 x LED, yellow/green
, , 4 x LED, multi-colour programmable
• Acoustic signal: buzzer
