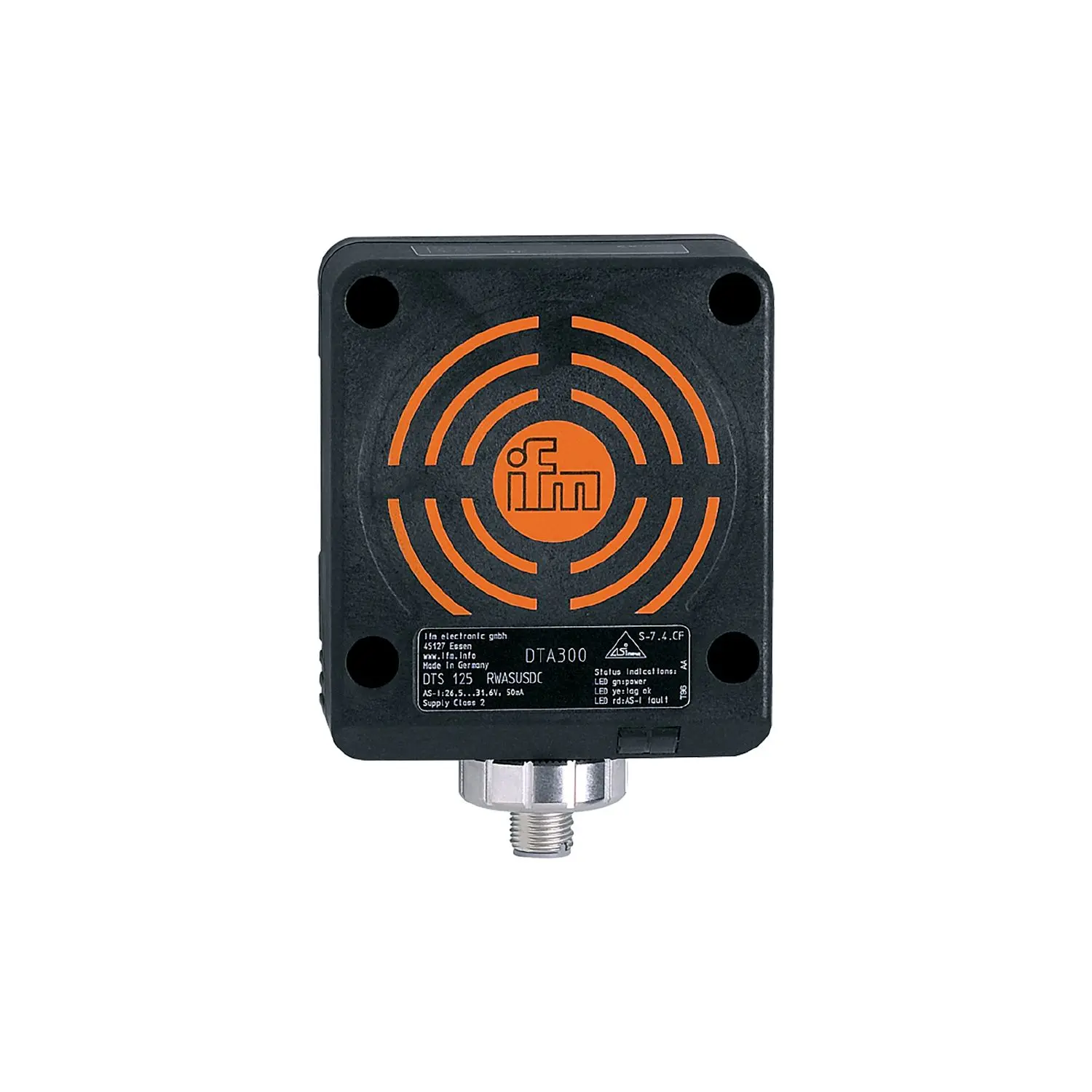

ifm Electronic DTA300 RFID Schreib Lesekopf mit AS Interface

Application

• Application: detection of objects on transport equipment
• Radio approval for: USA; Canada; EU/RED; Australia; Singapore; China
• Note on radio approval: The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

• Operating voltage [V]: 26.5...31.6 DC
• Current consumption [mA]: < 65
• Protection class: III
• Operating frequency [MHz]: 0,125

Outputs

• Electrical design: AS-i

Detection zone

• Travel speed [m/s]: < 0.5
• Distance read/read head front: 400
• Distance read/read head side: 280
• Note on distance read/read head: referred to, :,
, Read/write head, , DTA300, Read head, , DTA301
• Distance write/read head front [mm]: 500
• Distance write/read head side [mm]: 500
• Note on distance write/read head: referred to, :,
, Read/write head, , DTA300, Read head, , DTA301
• Distance to the ID tag [mm]: read, :, ≤ 80
, static, ,

Interfaces

• Communication interface: AS-i

Operating conditions

• Ambient temperature [°C]: -20...60
• Storage temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 50295, 1999-03
• Shock resistance: EN 60068-2-29, 40 g 6 ms
, EN 60068-2-27, 50 g 11 ms
• Vibration resistance: EN 60068-2-6, 20 g 10...55 Hz
• MTTF [years]: 422

AS-i classification

• AS-i I/O configuration [hex]: 7
• AS-i ID code [hex]: 4
• AS-i certificate: 83401

Mechanical data

• Weight [g]: 414
• Housing: rectangular
• Dimensions [mm]: 92 x 80 x 40
• Materials: housing: PPE; metal parts: diecast zinc / brass nickel-plated

Displays / operating elements

• Display: Operating voltage, 1 x LED, green
, tag co
