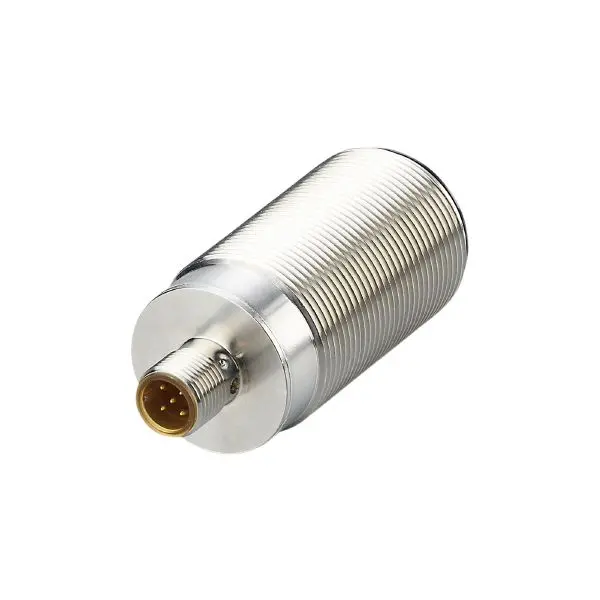

ifm Electronic ANT410 RFID Schreib Lesekopf HF

Application

• Application: detection of objects on transport equipment
• Radio approval for: USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine
• Note on radio approval: The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

• Operating voltage [V]: 19.2...28.8 DC; (supply only via the DTE10x evaluation unit (to EN 60950-1))
• Current consumption [mA]: < 50
• Protection class: III
• Operating frequency [MHz]: 13,56
• RFID standard: ISO 15693

Detection zone

• Distance write/read head front [mm]: 40
• Distance write/read head side [mm]: 20
• Distance to the ID tag [mm]: referred to 20 mm coin tag; I-CODE SLI, :, ≤ 12
, only for static applications, ,

Interfaces

• Communication interface: DATA / DTE10x

Operating conditions

• Ambient temperature [°C]: -20...60
• Storage temperature [°C]: -25...80
• Protection: IP 67; IP 69K

Tests / approvals

• Shock resistance: EN 60068-2-27, 40 g 6 ms / repetitive
, EN 60068-2-27, 50 g 11 ms / not repetitive
• Vibration resistance: EN 60068-2-6, 20 g 10...2000 Hz
• MTTF [years]: 610.46

Mechanical data

• Weight [g]: 83.75
• Housing: cylindrical
• Mounting: flush mountable
• Dimensions [mm]: M12 x 1 / L = 70
• Thread designation: M12 x 1
• Materials: housing: stainless steel; Protective cover: PPS

Displays / operating elements

• Display: operation, 1 x LED, green
, tag communication, 1 x LED, yellow

Accessories

• Items supplied: nut 2 x M12 x 1

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Connector: 1 x M12; coding: A

ANT410-00 — 05.07.2023 —
