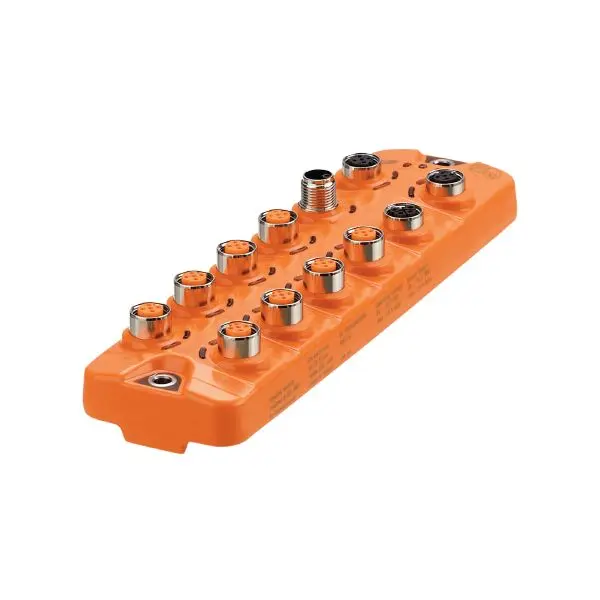

ifm Electronic AL4103 Ethernet Modul mit PROFINET Schnittstelle

Application

• Application: hygienic systems; I/O modules for field applications
• Daisy-chain function: power supply; fieldbus interface

Electrical data

• Operating voltage [V]: 20...28 DC; (US ; to SELV/PELV)
• Current consumption [mA]: 200...3900; (cULus: 200 ... 3500; US)
• Protection class: III
• Max. current load total [A]: 3.6
• Overall current rating (UL) [A]: 3.2

Inputs / outputs

• Number of inputs and outputs: Number of digital inputs: 16

Inputs

• Number of digital inputs: 16; (type 2 according to IEC 61131-2)
• Switching level high [V]: 11...30
• Switching level low [V]: 0...5
• Digital inputs protected against short circuits: yes

Software / programming

• Parameter setting options: counter function
• Functions and parameters: function, CTU (Up Counter), CTD (Down Counter), CTUD (Up-Down Counter), CTDIR (Direction Counter)
, number, 8 (1 counter for each port), count frequency, 4500 Hz, main counter, 32 Bit (0…4.294.967.295), batch counter, 16 Bit (0…65.535)

Interfaces

• Communication interface: Ethernet
Ethernet - PROFINET
• Transmission standard: 100Base-TX
• Transmission rate: 100 MBit/s
• Protocol: PROFINET
• Factory settings: IP address: 0.0.0.0
, subnet mask: 0.0.0.0, gateway IP address: 0.0.0.0, MAC address: see type label
• Note on interfaces: CC-C (Conformance Class C) (IRT-Switch)
, S2 redundancy, Netload Class III, CiR (Configuration in Run), SNMP (Simple Network Management Protocol), MRP (Media Redundancy Protocol), Supported network topologies: line, ring

Operating conditions

• Ambient temperature [°C]: -25...60
• Storage temperature [°C]: -25...85
• Max. relative air humidity [%]: 90
• Protection: IP 65; IP 66; IP 67; IP 69K
