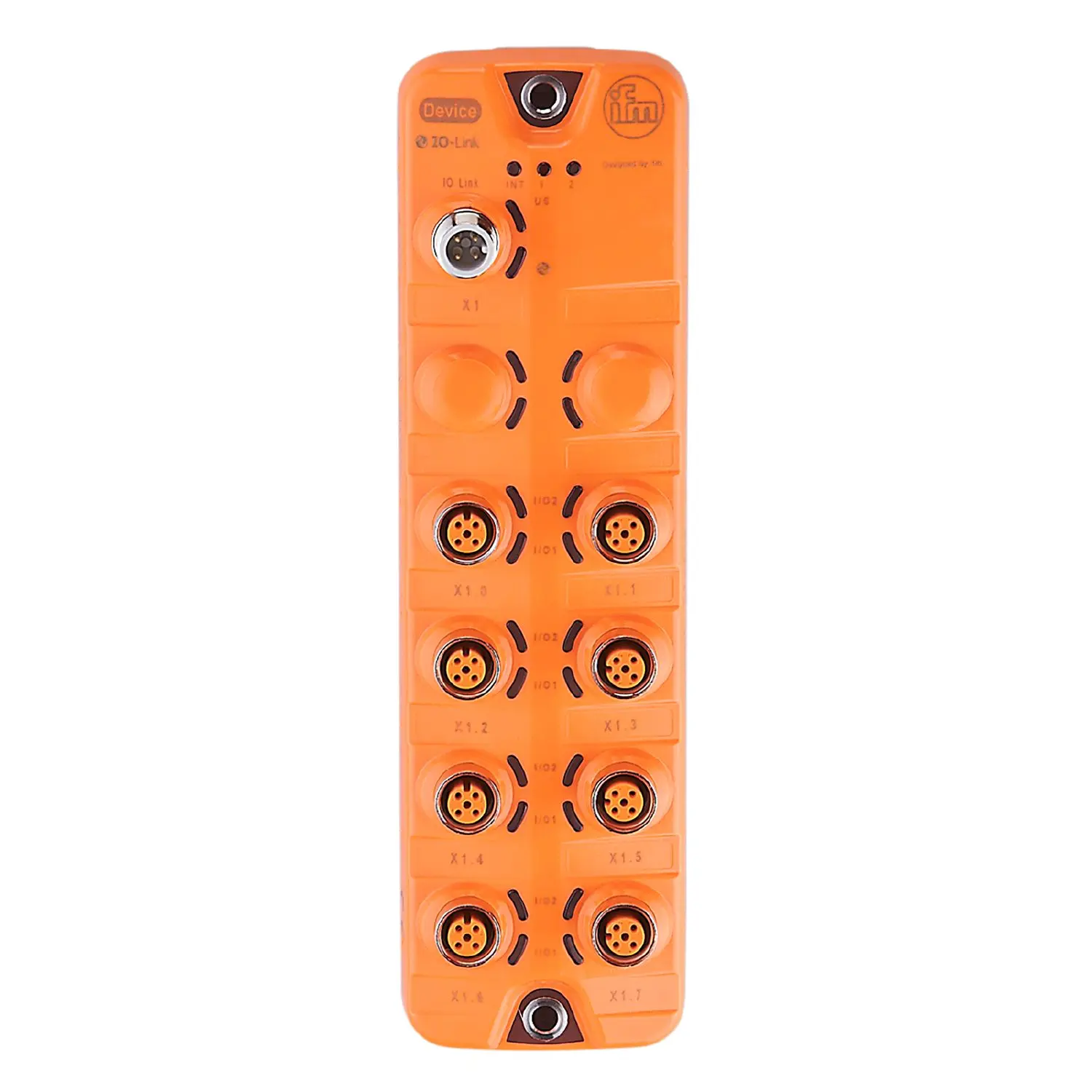

ifm Electronic AL2323 IO Link Eingangs /Ausgangsmodul

Electrical data

• Operating voltage [V]: 18...30 DC
• Current consumption [mA]: 100; (US)
• Protection class: III
• Additional voltage supply [V]: 18...30 DC; (UA)
• Max. current consumption from additional supply [mA]: 3600; (UA)

Inputs / outputs

• Total number of inputs and outputs: 16
• Number of inputs and outputs: Number of digital inputs: 16; Number of digital outputs: 16

Inputs

• Number of digital inputs: 16; (configurable)
• Input circuit of digital inputs: PNP; (type 3 (IEC 61131-2))
• Sensor supply of the inputs: UA
• Power supply [V]: 18...30
• Input current High [mA]: 2...15
• Input current Low [mA]: 0...1.5
• Switching level high [V]: 11...28
• Switching level low [V]: 0...5

Outputs

• Number of digital outputs: 16; (configurable)
• Max. current load per output [mA]: 1800
• Max. current load outputs total [A]: 3.6; (max. current load per segment: 1800 mA)
• Short-circuit protection: yes
• Actuator supply outputs: UA

Interfaces

• Communication interface: IO-Link
• SDCI standard: IEC 61131-9
• Transmission type: COM3 (230,4 kBaud)
• IO-Link revision: 1.1
• SIO mode: no
• Required master port type: B
• Min. process cycle time [ms]: 4
• Supported DeviceIDs:
  • Type of operation, DeviceID: default, 1314
  • Note: For further information please see the IODD PDF file under "Downloads"

  Operating conditions

  • Ambient temperature [°C]: -25...60
  • Storage temperature [°C]: -25...70
  • Max. relative air humidity [%]: 90
  • Max. height above sea level [m]: 2000
  • Protection: IP 65; IP 67
  • Protection rating (NEMA 250): 6P
  • Pollution degree: 2
  • Chemical media: ISO 16750-5, AA, BA, BD, HLP, CC, DB, DC, DD, CA
  , NEMA 250 5.13.1, AA

  Tests / approv
