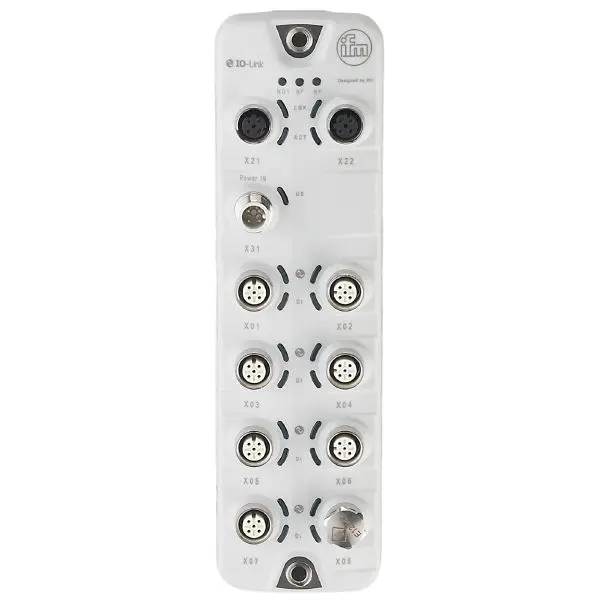

ifm Electronic AL1100 IO Link Master mit PROFINET Schnittstelle

Application

• Application: I/O modules for field applications
• Daisy-chain function: fieldbus interface

Electrical data

• Operating voltage [V]: 20...30 DC; (US ; to SELV/PELV)
• Current consumption [mA]: 300...3900; (US)
• Protection class: III
Sensor supply US
• Max. current load total [A]: 3.6

Inputs / outputs

• Total number of inputs and outputs: 8; (configurable)
• Number of inputs and outputs: Number of digital inputs: 8; Number of digital outputs: 4

Inputs

• Number of digital inputs: 8; (IO-Link Port Class A: 4 x 2)
• Switching level high [V]: 11...30
• Switching level low [V]: 0...5
• Digital inputs protected against short circuits: yes

Outputs

• Number of digital outputs: 4; (IO-Link Port Class A: 4 x 1)
• Max. current load per output [mA]: 300
• Short-circuit proof: yes

Interfaces

• Communication interface: Ethernet; IO-Link
Ethernet - PROFINET
• Transmission standard: 100Base-TX
• Transmission rate: 100 MBit/s
• Protocol: PROFINET
• Factory settings: IP address: 0.0.0.0
, subnet mask: 0.0.0.0, gateway IP address: 0.0.0.0, MAC address: see type label
• Note on interfaces: CC-C (Conformance Class C) (IRT-Switch)
, Netload Class III, SNMP (Simple Network Management Protocol), MRP (Media Redundancy Protocol), Supported network topologies: line, ring
IO-Link Master
• Transmission type: COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
• IO-Link revision: 1.1
• Number of ports class A: 4

Operating conditions

• Ambient temperature [°C]: -25...60
• Storage temperature [°C]: -25...85
• Max. relative air humidity [%]: 90
• Protection: IP 65; IP 66; IP 67
• Protection rating (NEMA 250): 6P
• Pollution degree: 2
