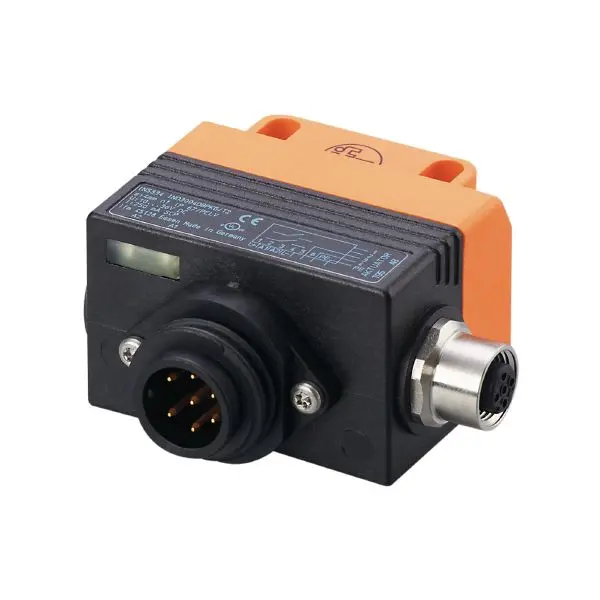

ifm Electronic AC2315 AS Interface Doppelsensor für pneumatische Schwenkantriebe

Product characteristics

• Electrical design: AS-i
• Sensing range [mm]: 4
• Dimensions [mm]: 55 x 60 x 35

Electrical data

• Operating voltage [V]: 26.5...31.6 DC; ("supply class 2" to cULus)
• Current consumption [mA]: < 40

Outputs

• Electrical design: AS-i

Detection zone

• Sensing range [mm]: 4

Operating conditions

• Ambient temperature [°C]: -20...70
• Protection: IP 67

Tests / approvals

• EMC: EN 50295,
, EN 61000-6-2,
• MTTF [years]: 924

AS-i classification

• AS-i version: 2.1
• Extended addressing mode: yes
• AS-i I/O configuration [hex]: 0
• AS-i ID code [hex]: A.F
• AS-i certificate: 74901

Mechanical data

• Weight [g]: 149.5
• Mounting: non-flush mountable
• Dimensions [mm]: 55 x 60 x 35
• Materials: PBT

Displays / operating elements

• Display: switching status, 2 x LED, yellow

Accessories

• Items supplied: Reinforcement bracket
, socket head screws: 2 x M5 x 35, washers: 2

Remarks

• Pack quantity: 1 pcs.

AC2315-01 — 13.04.2023 —
