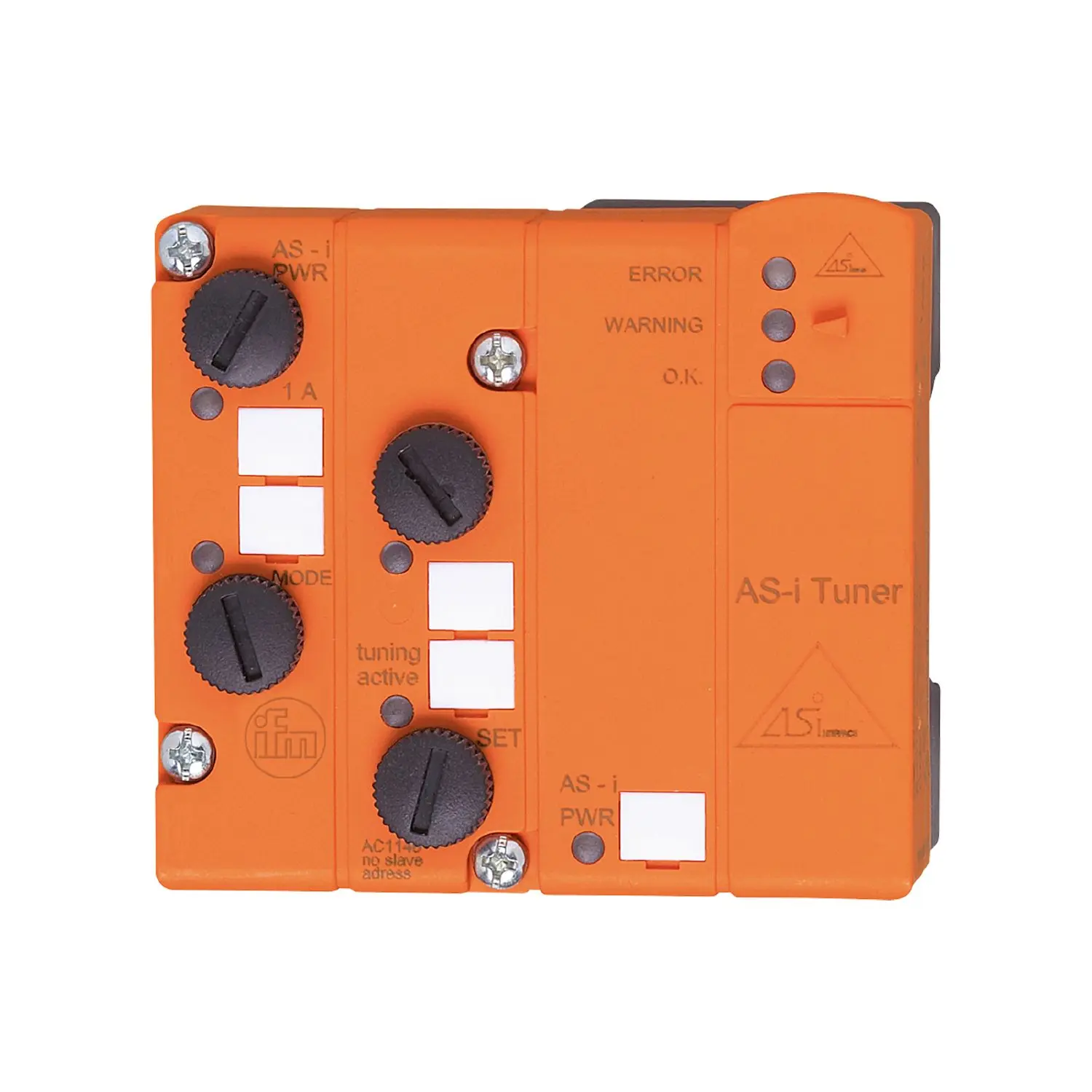

ifm Electronic AC1146 AS Interface Diagnosemodul

Application

• Application: diagnostic tool for AS-i

Electrical data

• Nominal voltage DC [V]: 26.5...31.6
• Max. current consumption from AS-i [mA]: 60
• Reverse polarity protection: yes
• Undervoltage monitoring: yes

Operating conditions

• Ambient temperature [°C]: 0...55
• Protection: IP 67

Tests / approvals

• MTTF [years]: 140

Mechanical data

• Weight [g]: 199.2
• Materials: PBT

Displays / operating elements

• Display: operation, LED, green
, warning, LED, yellow, errors, LED, red

Accessories

• Accessories (optional): Module lower part:, AC5000

Remarks

• Remarks: no addressing required
, current rating of the AS-i distribution socket max. 1 A
• Pack quantity: 1 pcs.

Electrical connection

• : contact pins to module lower part, FK:
• : Connector: M12; coding: A

AC1146-00 — 09.08.2006 —
