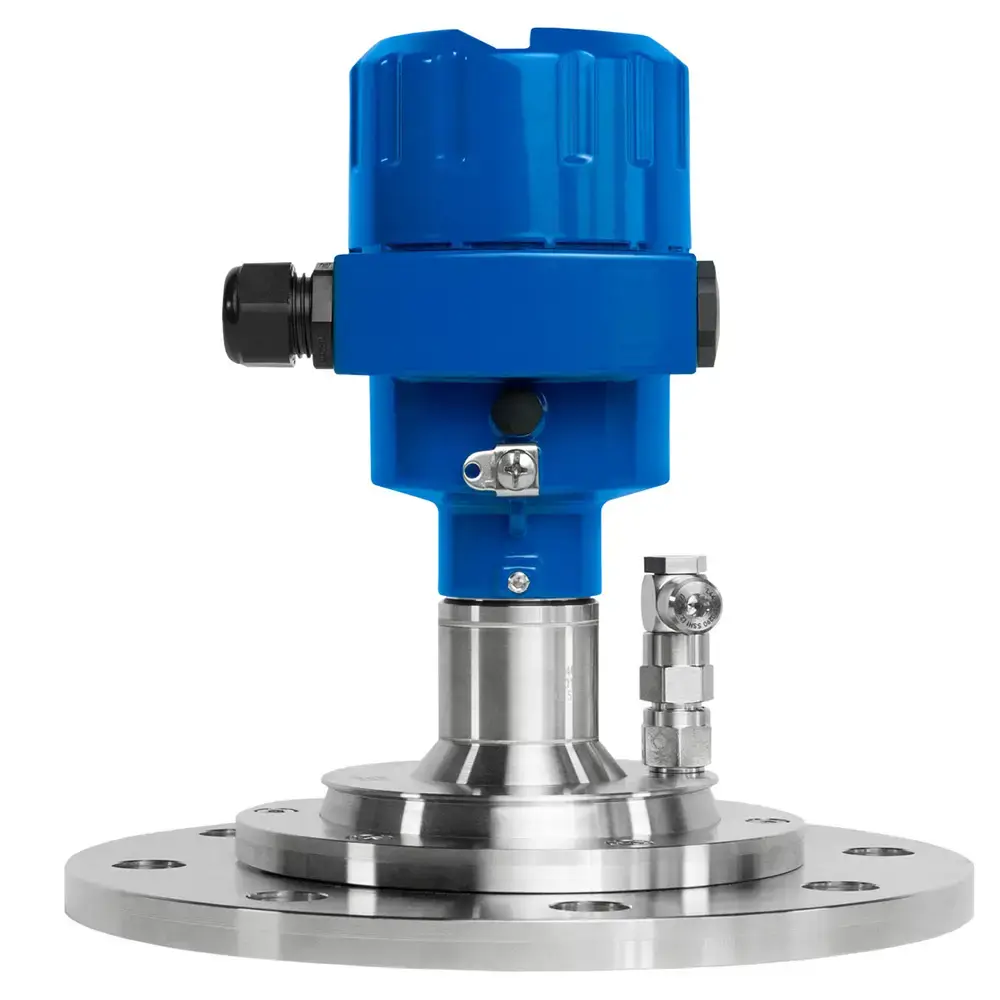

Radar sensor NR3300, DN100 SS flange, 4-20 mA HART, with display

Process Temperature / Seal / Material: -40...+150°C, FKM (SHS FPM 70C3 GLT),

PEEK Second Line of Defense: Without (Single line of defense)

Electronic Module: 2-wire 4..20 mA, HART Process Connection: Swivelling holder for bulk solids suitable for flange EN1092-1, DN100 PN16, flat face, Form A / 316/316L

Housing / Enclosure: Aluminium single chamber / IP66/IP68 (0.2 bar)

Cable Entry: 1x M20x1.5 screwed cable gland PA black (ø5-9 mm [0.20-0.35"]),

Standard, 1x blind plug

Plug on Display: Plug on Display NivoPlug Additional

Equipment: With rinsing connection
Max range: 120m
