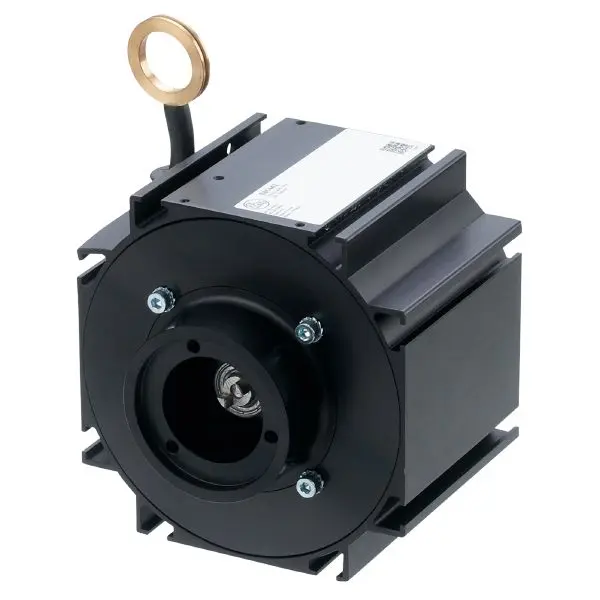

ifm Electronic E61443 Seilzugmechanik für Drehgeber

Product characteristics

• Shaft design: solid shaft
• Shaft diameter [mm]: 6

Application

• Design: for encoders with 58 mm synchro flange and 6 mm solid shaft

Accuracy / deviations

• Accuracy: ± 0.01 % FSO
• Repeatability: ± 0,001 % FSO

Operating conditions

• Ambient temperature [°C]: -20...80
• Storage temperature [°C]: -40...80
• Storage humidity [%]: 5...95; (non condensing)

Tests / approvals

• Shock resistance: IEC628-2-27, 50 g / 20 ms
• Vibration resistance: IEC68-2-6, 20 g / 20..200 Hz

Mechanical data

• Weight [g]: 3510.8
• Dimensions [mm]: 115 x 168.7 x 115
• Top flange diameter [mm]: 58
• Materials: housing: aluminium anodised; wire: stainless steel polyamide coated
• Shaft design: solid shaft
• Shaft diameter [mm]: 6
• Max. measuring length [mm]: 10000
• Wire drum circumference [mm]: 315
• Wire diameter [mm]: 1
• Wire connection: 20,2; (eyelet)
• Wire properties: max. speed of wire displacement, [m /s], 2
, max. wire acceleration, [g], 6, max. extension force, [N], 21, min. retraction force, [N], 8
• Fixing flange: synchro-flange

Accessories

• Items supplied: screws: 3 x M4
, cylinder screws: 4 x M4, washers, synchro-flange, Coupling for encoders

Remarks

• Pack quantity: 1 pcs.
