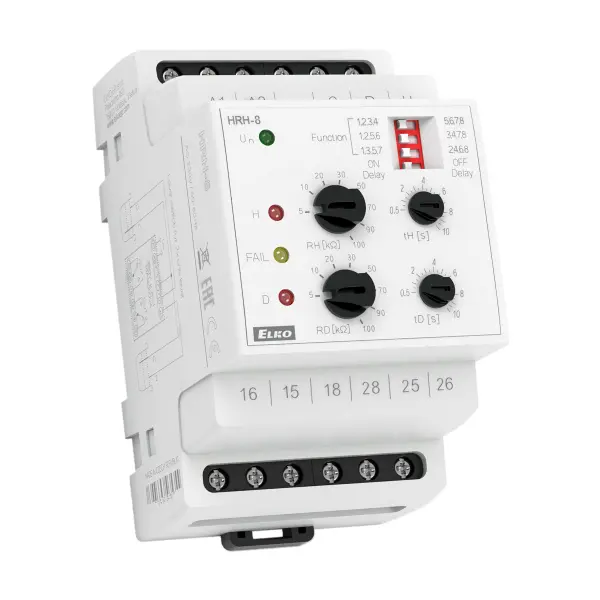

Level relay HRH-8, 230 VAC

Name: Level relay HRH-8, 230 VAC
Brand: CITI
Price: 86.67 EUR
Availability: InStock

Marke: CITI

Hersteller Artikel-Nr.: HRH-8

Produkt-Nr.: P-DCKLL2

Technische Daten

Relay is designed to control the level of conductive liquids in wells, tanks, pools, tankers, reservoirs,... (replacement HRH-1).
Galvanically isolated supply and guard circuits.
Within one device, the following confi gurations can be selected:
- 2x one-level monitoring (in separate tanks)
- 1x two-level monitoring (in one tank) - pumping from one tank to another.
DIP switch selection on the front panel (8 functions).
Adjustable probe sensitivity (for each probe separately).
Adjustable relay switching delay (for each probe separately).
10 Hz watch frequency prevents polarization of the liquid and increases resistance to interference by network frequency
