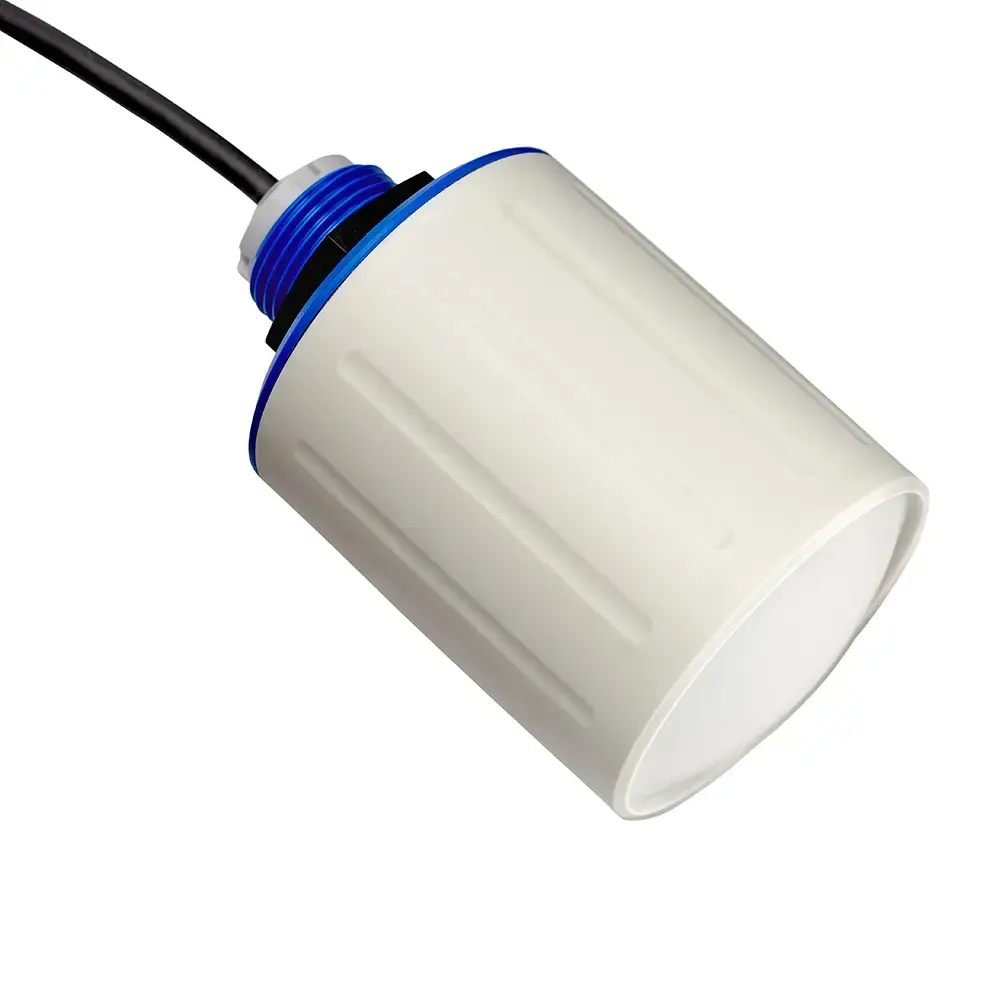

Level sensor NR4100, radar FMCW, 0-30m (0-20m bulk), 4-20mA HART, G1", 5m cable, 4° antenna, max 80°C/3Bar

Housing: PVDF IP66/IP68, Type 6P

Certificates: ATEX, IEC-Ex, cFMus, UKEX, INMETRO, KC, FCC, IC (Gas, dust explosion protection),

WHG Measuring range: up to 30 m

Measurement accuracy: ±2 mm

Pressure range: -1 to +3 bar (-14.5 to +43.5 psi)

Supply voltage: 12-35 V DC

Process connection: NPT 1", R 1", G 1" or mounting flange (> DN 80 / 3")

Process temperature: -40°C to +80°C (-40°F to +176°F)

Signal output: 4...20 mA, 2-wire
Communication: HART

Sensitivity: DK value ≥ 1.1

Sensor material: PVDF, FDA registered

Frequency: 80 GHz FMCW
