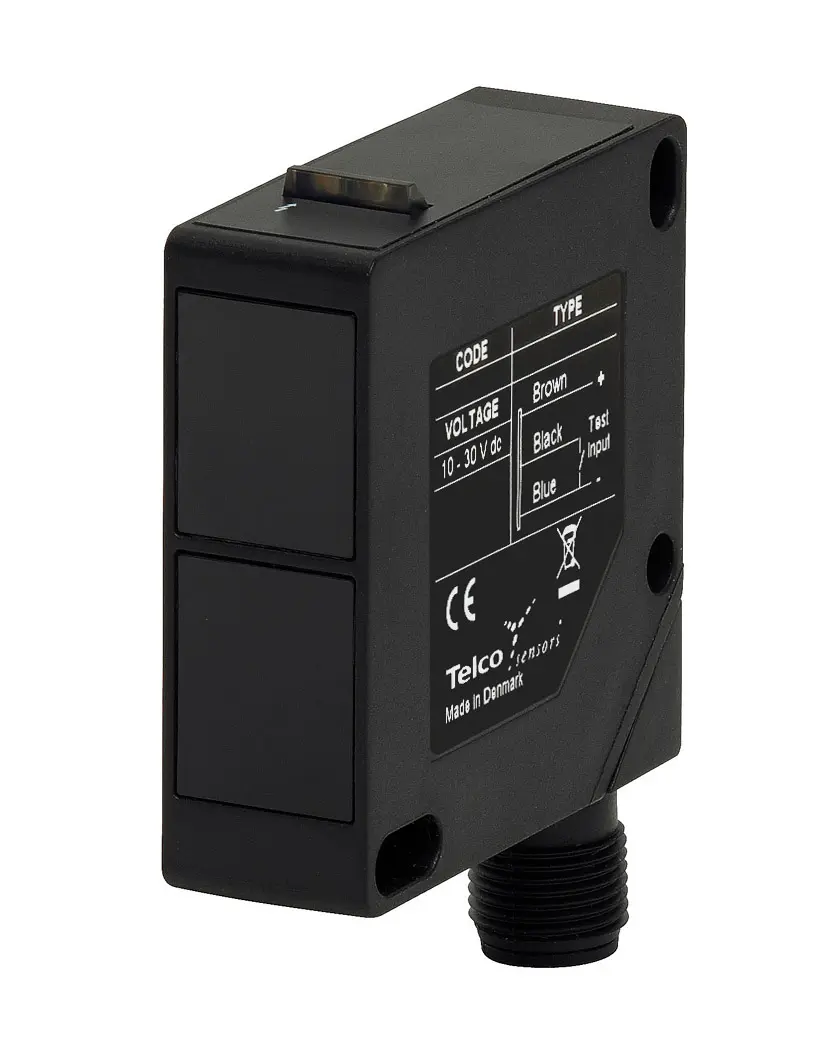

Telco SPT 2645 J, Fotovoltaikanlage, P/n: 7672
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Operation Mode: Thru Beam
- Function: Transmitter
- Supply Voltage: 10 - 30 V dc
- Light Source: Infrared (880 nm)
- Control Feature: Test input
- Sensing Range: 45 m
- Housing: 17 x 50 x 50
- Housing Material: Plastic
- Connection: 4 pin, M12 plug
- Supply Voltage: 10 – 30 V dc
- Voltage Ripple: +/– 15 %
- Reverse Polarity Protected: Yes
- Current Consumption: < 65 mA
- Test Input: Yes
- Power On Indicator: Green LED
- Light Source: Infrared (880 nm)
- Emission Angle: +/– 2°
- Housing Material, Front Lens: Polycarbonate
- Housing Material, Sensor Housing: Polycarbonate / ABS
- Cable: 3 x 0,20 mm2
- Cable Sleeve: PVC ø 4,9 mm
- Vibration: 10 – 55 Hz, 0.5 mm
- Shock: 30 g
- Operation Temperature: –20 to +55 °C
- Storage Temperature: –40 to +80 °C
- Sealing Class: IP 67
