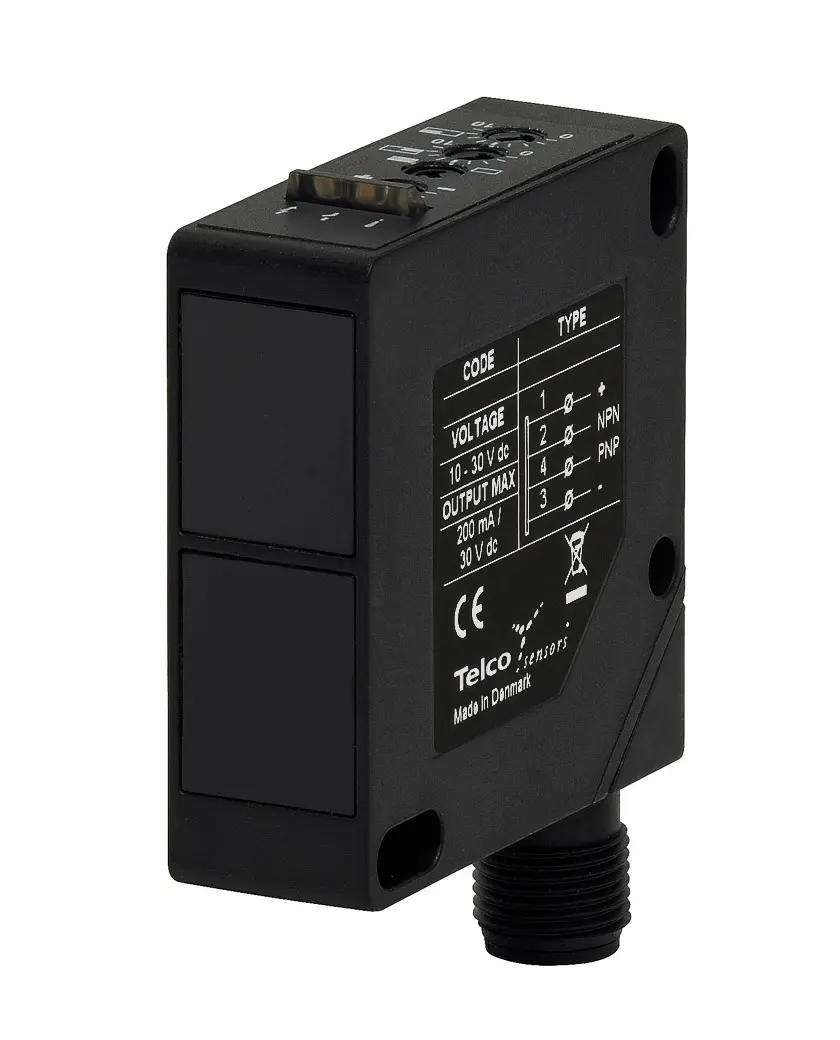

Telco SPR 2645T J, Fotovoltaikanlage, P/n: 7675
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Operation Mode: Thru Beam
- Function: Receiver
- Supply Voltage: 10 - 30 V dc
- Control Feature: Sensitivity pot. and light/dark switch
- Sensing Range: 45 m
- Output: NPN/PNP
- Output Status: N.C./N.O.
- Timer: On/Off Delay
- Housing: 17 x 50 x 50
- Housing Material: Plastic
- Connection: 4 pin, M12 plug
- Supply Voltage: 10 – 30 V dc
- Voltage Ripple: +/– 15 %
- Reverse Polarity Protected: Yes
- Short Circuit Protected: Yes
- Current Consumption: < 65 mA
- Max. Operation Frequency: 250 Hz
- Response Time ton / toff: 2 ms / 2 ms
- Output, Transistor: 200 mA / 30 V dc
- Power On Indicator: Green LED
- Output Indicator: Yellow LED
- Signal Status Indicator: Red LED
- Hysteresis: 20 – 30 %
- Opening Angle: +/– 2,5°
- Delay Time ton / toff: 0 – 10 sec, adjustable
- Housing Material, Front Lens: Polycarbonate
- Housing Material, Sensor Housing: Polycarbonate / ABS
- Cable: 4 x 0,20 mm2
- Cable Sleeve: PVC ø 4,9 mm
- Vibration: 10 – 55 Hz, 0.5 mm
- Shock: 30 g
- Operation Temperature: –20 to +55 °C
- Storage Temperature: –40 to +80 °C
- Sealing Class: IP 67
- Light Immunity 5°: 25 000 lux
