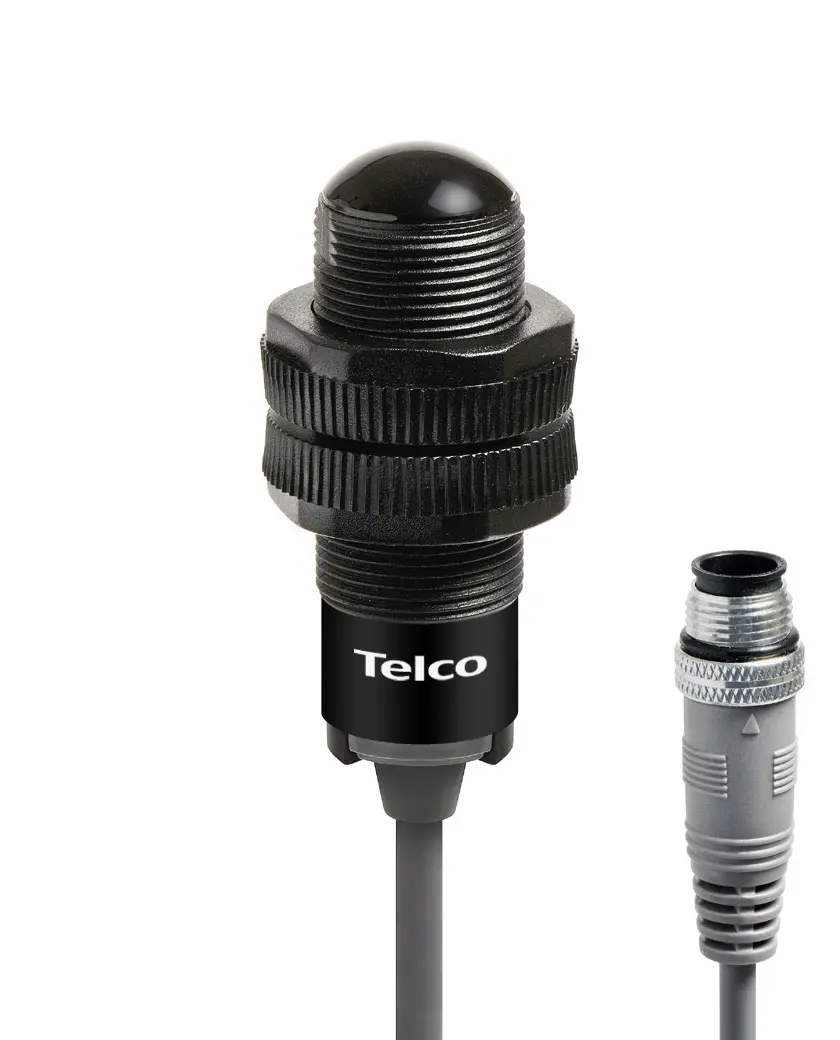

Telco SMT 9070C TP 0.1-J5, Fotovoltaikanlage, P/n: 11953
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Operation Mode: Thru Beam
- Function: Transmitter
- Supply Voltage: 10 - 30 V dc
- Light Source: Infrared (880 nm)
- Control Feature: Adjustable range and test input
- Sensing Range: 70 m
- Housing: M18 x 1
- Housing Material: Plastic
- Connection: 0.1 m cable with 5 pin, M12
- Channel Nº: Selectable 4 channels
- Supply Voltage: 10 - 30 V dc
- Voltage Ripple: 15 %
- Reverse Polarity Protected: Yes
- Current Consumption: 40 mA
- Test Input: Yes
- Control Input: Adjustable range
- Power On Indicator: Green LED
- Light Source: Infrared (880 nm)
- Emission Angle: +/- 4°
- Housing Material, Front Lens: Polycarbonate
- Housing Material, Sensor Housing: Polycarbonate
- Cable: 5 x 0,14 mm²
- Cable Sleeve: PVC ø 4,9 mm
- Vibration: 10 - 55 Hz, 0,5 mm
- Shock: 30 g
- Operation Temperature: -20 to +60 °C
- Storage Temperature: -40 to +80 °C
- Sealing Class: IP 69K
Produktangebot
Sichere Zahlung
Rechnung
Schneller Versand
etc.
Fragen zum Produkt?
Kennzeichnungen
- Artikeltyp
- Photovoltaic Systems
