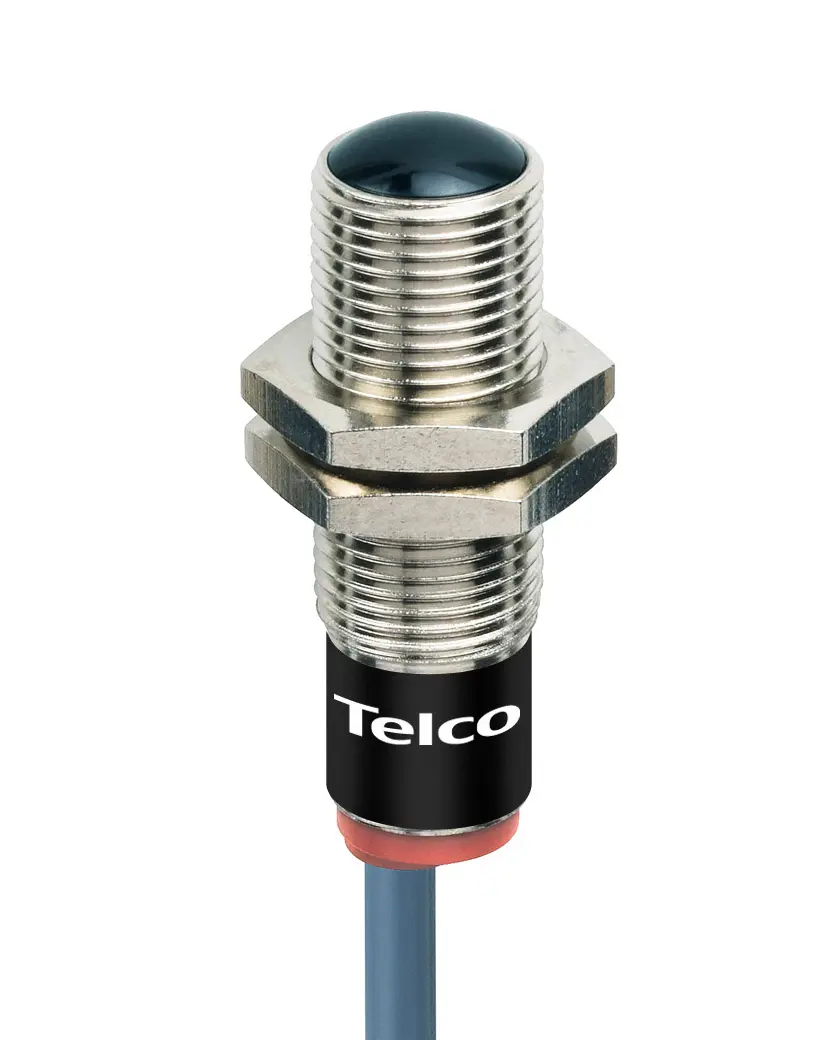

Telco SMT 3000C TB 5, Fotovoltaikanlage, P/n: 4280
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Operation Mode: Thru Beam
- Function: Transmitter
- Supply Voltage: 10 - 30 V dc
- Light Source: Infrared (880 nm)
- Control Feature: Adjustable range and test input
- Sensing Range: 6 m
- Housing: M12 x 1
- Housing Material: Nickel Plated Brass
- Connection: 5 m cable
- Supply Voltage: 10 - 30 V dc
- Voltage Ripple: 15 %
- Reverse Polarity Protected: Yes
- Current Consumption: Max. 30 mA
- Test Input: Yes
- Control Input: Adjustable range
- Power On Indicator: Green LED
- Light Source: Infrared (880 nm)
- Emission Angle: +/- 10°
- Housing Material, Front Lens: Polycarbonate
- Housing Material, Sensor Housing: Nickel Plated Brass
- Cable: 3 x 0,14 mm²
- Cable Sleeve: PVC ø 3,4 mm
- Vibration: 10 - 55 Hz, 0,5 mm
- Shock: 30 g
- Operation Temperature: -20 to +50 °C
- Storage Temperature: -40 to +80 °C
- Sealing Class: IP 67
