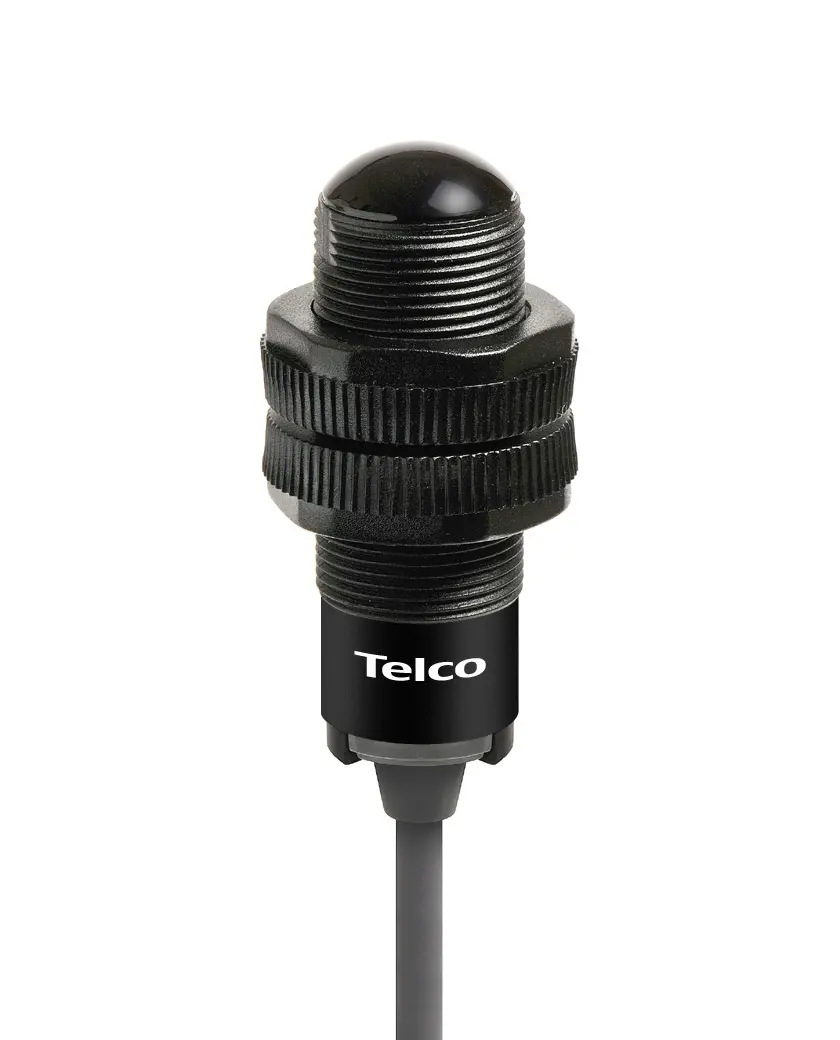

Telco SMR 9370 TP 5, Fotovoltaikanlage, P/n: 11966
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Operation Mode: Thru Beam
- Function: Receiver
- Supply Voltage: 10 - 30 V dc
- Sensing Range: 70 m
- Output: PNP
- Output Status: N.O.
- Housing: M18 x 1
- Housing Material: Plastic
- Connection: 5 m cable
- Channel Nº: Selectable 4 channels
- Supply Voltage: 10 - 30 V dc
- Voltage Ripple: 15 %
- Reverse Polarity Protected: Yes
- Short Circuit Protected: Yes
- Current Consumption: 40 mA
- Max. Output Load: 100 mA
- Max. Residual Voltage: 2,5 V
- Max. Operation Frequency: 20 Hz
- Response Time ton / toff: 25 ms / 25 ms
- Output Indicator: Yellow LED
- Hysteresis: Approx. 20 %
- Opening Angle: +/- 3°
- Housing Material, Front Lens: Polycarbonate
- Housing Material, Sensor Housing: Polycarbonate
- Cable: 5 x 0,14 mm²
- Cable Sleeve: PVC ø 4,9 mm
- Vibration: 10 - 55 Hz, 0,5 mm
- Shock: 30 g
- Operation Temperature: -20 to +60 °C
- Storage Temperature: -40 to +80 °C
- Sealing Class: IP 69K
- Light Immunity 5°: > 20 000 lux
- Light Immunity 20°: > 100 000 lux
Produktangebot
Sichere Zahlung
Rechnung
Schneller Versand
etc.
Fragen zum Produkt?
Kennzeichnungen
- Artikeltyp
- Photovoltaic Systems
