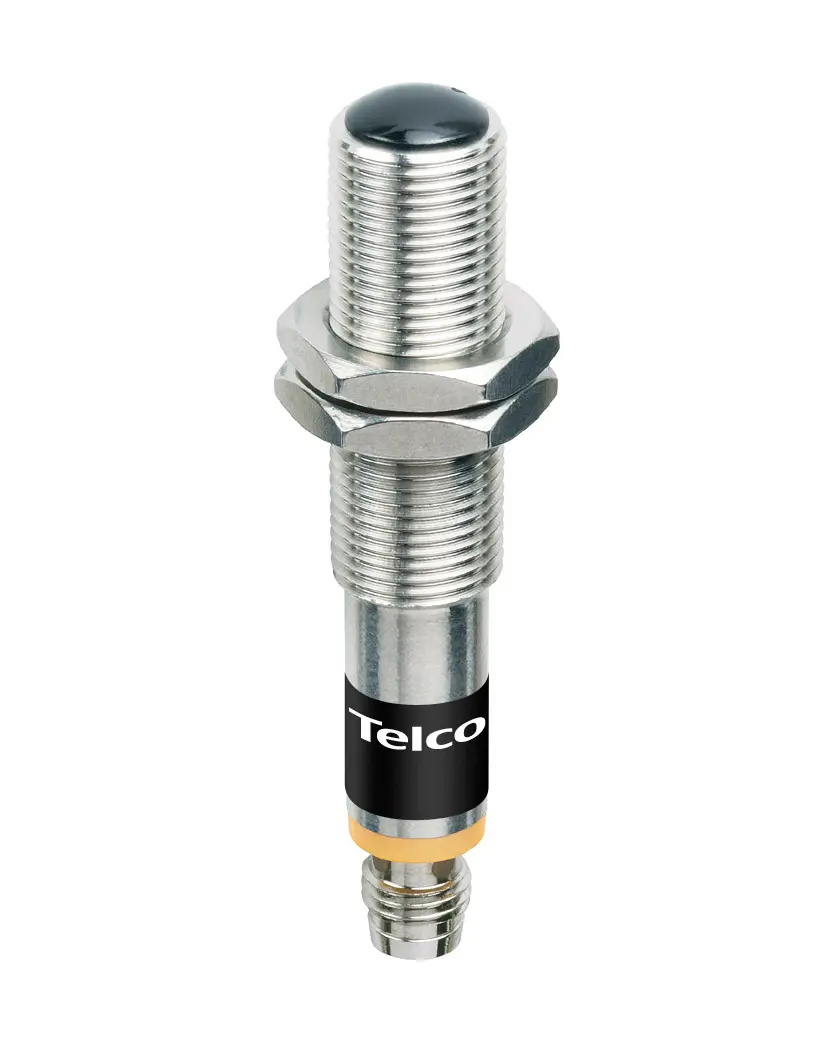

Telco SMR 6302 TS T3, Fotovoltaikanlage, P/n: 6739
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Operation Mode: Thru Beam
- Function: Receiver
- Supply Voltage: 10 - 32 V dc
- Sensing Range: 2 m
- Output: PNP
- Output Status: N.O.
- Housing: M12 x 1
- Housing Material: Stainless Steel
- Connection: 3 pin, M8 plug
- Supply Voltage: 10 - 32 V dc
- Voltage Ripple: 15 %
- Reverse Polarity Protected: Yes
- Short Circuit Protected: Yes
- Current Consumption: Max. 320 mW
- Max. Output Load: 100 mA
- Max. Residual Voltage: 2,5 V
- Max. Operation Frequency: 1000 Hz
- Response Time ton / toff: 0,5 ms / 0,5 ms
- Output Indicator: Yellow LED
- Hysteresis: Approx. 30 %
- Opening Angle: +/- 6°
- Housing Material, Front Lens: Polycarbonate
- Housing Material, Sensor Housing: Stainless Steel (AISI 316 / 1.4401)
- Cable: 3/4 x 0,14 mm²
- Cable Sleeve: PVC ø 4,0 mm
- Vibration: 10 - 55 Hz, 0.5 mm
- Shock: 30 g
- Operation Temperature: -20 to +60 °C
- Storage Temperature: -40 to +80 °C
- Sealing Class: IP 67
- Light Immunity 5°: > 50 000 lux
