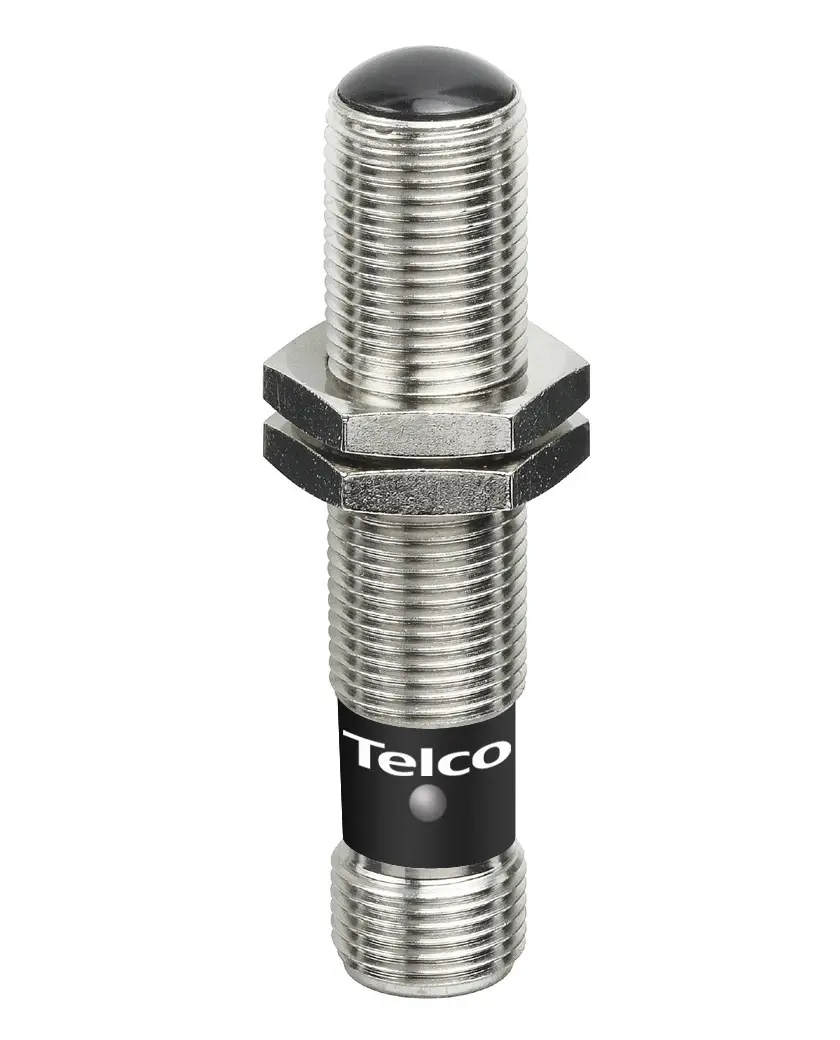

Telco SMR 3306 TB J, Fotovoltaikanlage, P/n: 4291
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Operation Mode: Thru Beam
- Function: Receiver
- Supply Voltage: 10 - 30 V dc
- Sensing Range: 6 m
- Output: PNP
- Output Status: N.O.
- Housing: M12 x 1
- Housing Material: Nickel Plated Brass
- Connection: 4 pin, M12 plug
- Supply Voltage: 10 - 30 V dc
- Voltage Ripple: 15 %
- Reverse Polarity Protected: Yes
- Short Circuit Protected: Yes
- Current Consumption: Max. 8 mA
- Max. Output Load: 100 mA
- Max. Residual Voltage: 2,5 V
- Max. Operation Frequency: > 90 Hz
- Response Time ton / toff: < 4 ms / < 6 ms
- Output Indicator: Yellow LED
- Hysteresis: Approx. 25 %
- Opening Angle: +/- 7°
- Housing Material, Front Lens: Polycarbonate
- Housing Material, Sensor Housing: Nickel Plated Brass
- Cable: 3 x 0,14 mm²
- Cable Sleeve: PVC ø 3,4 mm
- Vibration: 10 - 55 Hz, 0,5 mm
- Shock: 30 g
- Operation Temperature: -20 to +50 °C
- Storage Temperature: -40 to +80 °C
- Sealing Class: IP 67
- Light Immunity 5°: 35 000 lux
