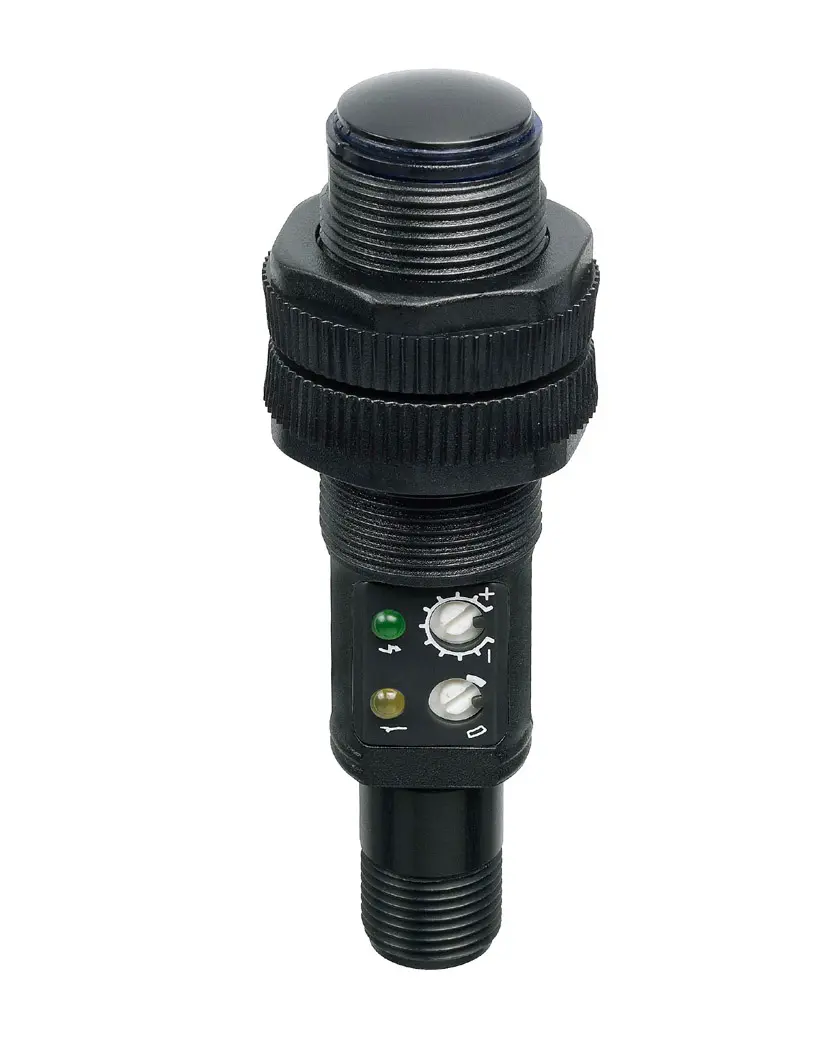

Telco SMP 8500 PG J, Fotovoltaikanlage, P/n: 5928
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Operation Mode: Diffuse Proximity
- Function: Both
- Supply Voltage: 10 - 30 V dc
- Light Source: Infrared (880 nm)
- Control Feature: Sensitivity pot. and light/dark switch
- Sensing Range: 0,5 m
- Output: PNP
- Output Status: N.C./N.O.
- Housing: M18 x 1
- Housing Material: Plastic
- Connection: 4 pin, M12 plug
- Supply Voltage: 10 - 30 V dc
- Voltage Ripple: 15 %
- Reverse Polarity Protected: Yes
- Short Circuit Protected: Yes
- Current Consumption: 14 mA
- Max. Output Load: 120 mA / 30 V dc
- Max. Residual Voltage: 1,5 V
- Max. Operation Frequency: 250 Hz
- Response Time ton / toff: 2 ms / 2 ms
- Power On Indicator: Green LED
- Output Indicator: Yellow LED
- Hysteresis: Approx. 5 - 15 %
- Opening Angle: +/- 4°
- Housing Material, Front Lens: Polycarbonate
- Housing Material, Sensor Housing: Polycarbonate
- Vibration: 10 - 55 Hz, 0,5 mm
- Shock: 30 g
- Operation Temperature: -20 to +60 °C
- Storage Temperature: -40 to +80 °C
- Sealing Class: IP 67
- Light Immunity 15°: > 40 000 lux
