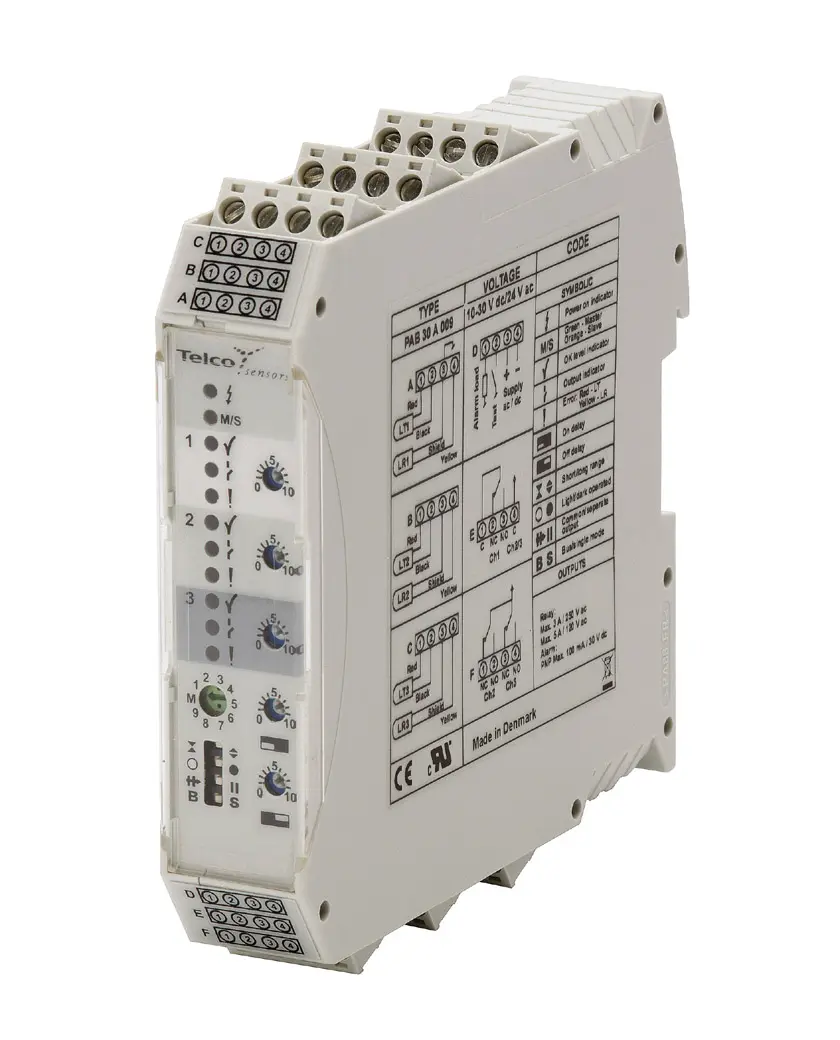

Telco PAB 30 A 209, Fotovoltaikanlage, P/n: 6083

Name: Telco PAB 30 A 209, Fotovoltaikanlage, P/n: 6083
Brand: TELCO
Price: 609.55 EUR
Availability: InStock

Marke: TELCO

Hersteller Artikel-Nr.: 6083

Produkt-Nr.: P-DFKSTL

Technische Daten

Function: Amplifier
Supply Voltage: 10 – 30 V dc / 24 V ac
Number of Channels: 3
Sensing Range: 47 m
Sensitivity Adjustment: Manual
Output: 3 individual PNP
Timer: On/Off Delay
Housing: Removable screw terminals
Supply Voltage: 10 - 30 V dc or 24 V ac
Voltage Tolerance: +/- 10 %
Current Consumption: Max. 2,6 W
Response Time ton / toff, Transistor: Short range: 24 ms / 24 msLong range: 60 ms / 60 ms
Output, Transistor: 30 V dc / 100 mA
Alarm Output, Transistor: PNP - 30 V dc / 100 mA
Test Input: Yes
Power On Indicator: Green LED
Output Indicator: Yellow LED
Alarm Indicator: Red / yellow LED
LR Sensor Failure Indicator: Yelow LED
LT Sensor Failure Indicator: Red LED
Master/Slave Address Indicator: Green / orange LED
Signal Level Indicator: Green LED
Sensor Monitor LED Drive: Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PAB output activated
Hysteresis: Approx. 35 %
Operation Frequency, Transistor: Short range: 21 HzLong range: 8 Hz
Delay Time ton / toff: 0 – 10 sec, adjustable
Housing Material: Polyamide
Operation Temperature: – 10 to +50 °C
Storage Temperature: – 40 to +80 °C
Sealing Class: IP 40
