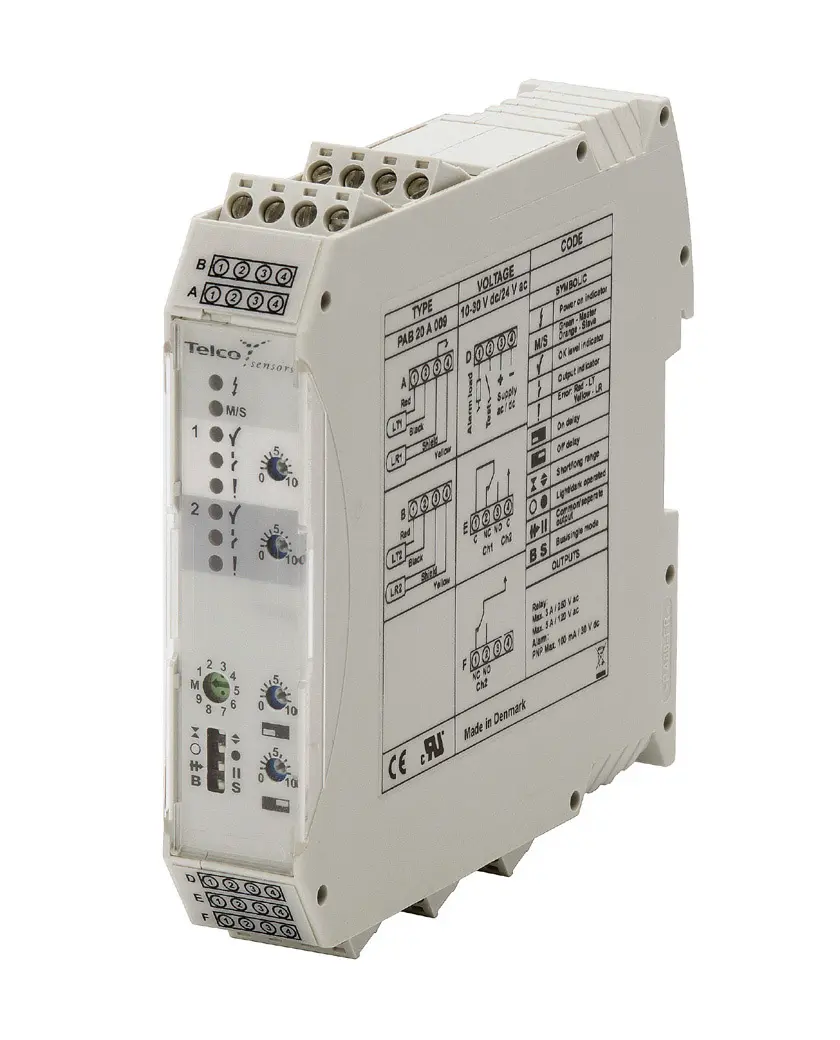

Telco PAB 20 A 209, Fotovoltaikanlage, P/n: 6081

Name: Telco PAB 20 A 209, Fotovoltaikanlage, P/n: 6081
Brand: TELCO
Price: 528.23 EUR
Availability: InStock

Marke: TELCO

Hersteller Artikel-Nr.: 6081

Produkt-Nr.: P-DFKSTJ

Technische Daten

Function: Amplifier
Supply Voltage: 10 – 30 V dc / 24 V ac
Number of Channels: 2
Sensing Range: 47 m
Sensitivity Adjustment: Manual
Output: 2 individual PNP
Timer: On/Off Delay
Housing: Removable screw terminals
Supply Voltage: 10 - 30 V dc or 24 V ac
Voltage Tolerance: +/- 10 %
Current Consumption: Max. 2,3 W
Response Time ton / toff, Transistor: Short range: 18 ms / 18 msLong range: 45 ms / 45 ms
Output, Transistor: 30 V dc / 100 mA
Alarm Output, Transistor: PNP - 30 V dc / 100 mA
Test Input: Yes
Power On Indicator: Green LED
Output Indicator: Yellow LED
Alarm Indicator: Red / yellow LED
LR Sensor Failure Indicator: Yelow LED
LT Sensor Failure Indicator: Red LED
Master/Slave Address Indicator: Green / orange LED
Signal Level Indicator: Green LED
Sensor Monitor LED Drive: Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PAB output activated
Hysteresis: Approx. 35 %
Operation Frequency, Transistor: Short range: 28 HzLong range: 11 Hz
Delay Time ton / toff: 0 – 10 sec, adjustable
Housing Material: Polyamide
Operation Temperature: – 10 to +50 °C
Storage Temperature: – 40 to +80 °C
Sealing Class: IP 40
