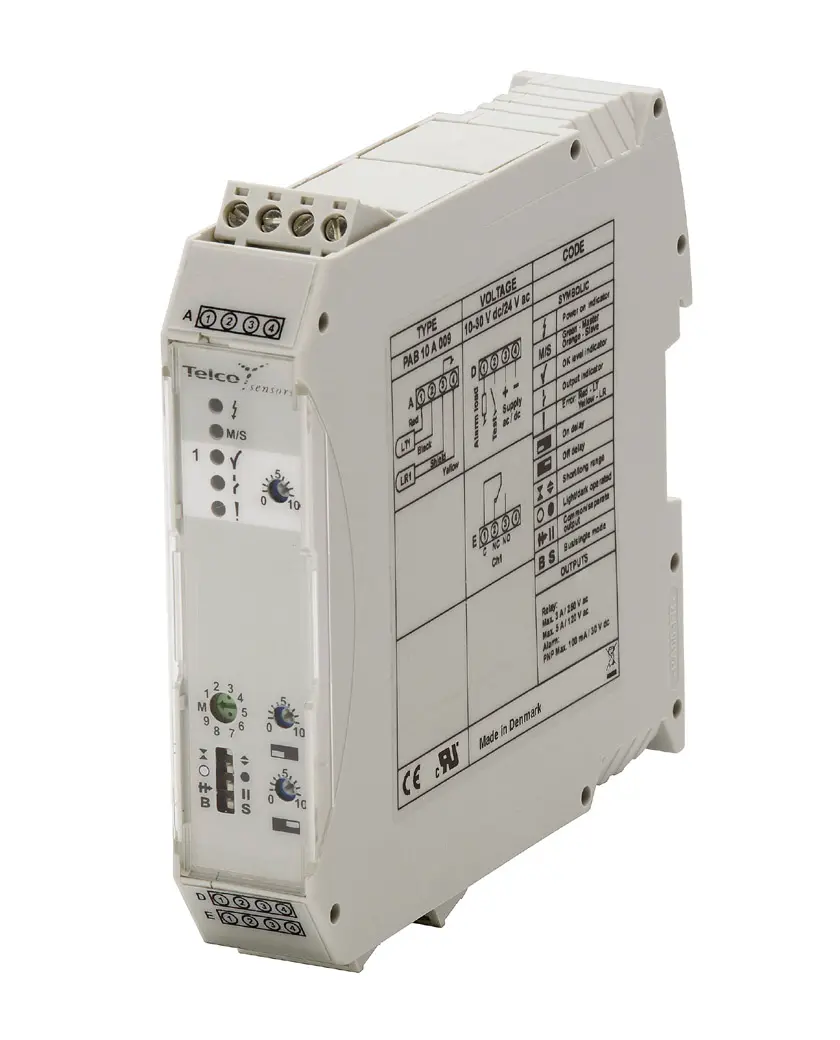

Telco PAB 10 A 009, Fotovoltaikanlage, P/n: 6079

Name: Telco PAB 10 A 009, Fotovoltaikanlage, P/n: 6079
Brand: TELCO
Price: 479.2 EUR
Availability: InStock

Marke: TELCO

Hersteller Artikel-Nr.: 6079

Produkt-Nr.: P-DFKSTG

Technische Daten

Function: Amplifier
Supply Voltage: 10 – 30 V dc / 24 V ac
Number of Channels: 1
Sensing Range: 70 m
Sensitivity Adjustment: Manual
Output: Relay
Timer: On/Off Delay
Housing: Removable screw terminals
Supply Voltage: 10 - 30 V dc or 24 V ac
Voltage Tolerance: +/- 10 %
Current Consumption: Max. 1,7 W
Response Time ton / toff, Relay: Short range: 27 ms / 20 msLong range: 45 ms / 38 ms
Output, Relay: 250 V ac / 3 A, 120 V ac / 5 A
Alarm Output, Transistor: PNP - 30 V dc / 100 mA
Test Input: Yes
Power On Indicator: Green LED
Output Indicator: Yellow LED
Alarm Indicator: Red / yellow LED
LR Sensor Failure Indicator: Yelow LED
LT Sensor Failure Indicator: Red LED
Master/Slave Address Indicator: Green / orange LED
Signal Level Indicator: Green LED
Sensor Monitor LED Drive: Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PAB output activated
Hysteresis: Approx. 35 %
Operation Frequency, Relay: Short range: 21 HzLong range: 12 Hz
Delay Time ton / toff: 0 – 10 sec, adjustable
Housing Material: Polyamide
Operation Temperature: – 10 to +50 °C
Storage Temperature: – 40 to +80 °C
Sealing Class: IP 40
